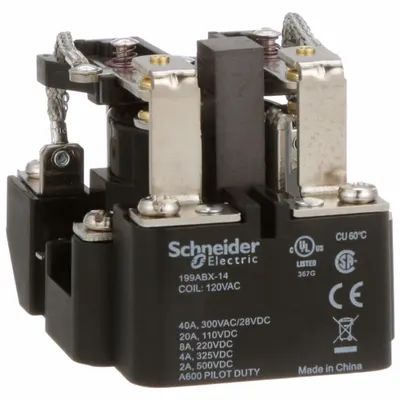

SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 120V AC, DPDT
The SCHNEIDER Open Power Relay is a surface-mounted relay from the 199 Power Series, featuring an octal base and screw terminal electrical connections. It is rated for 20 A at 110V DC (resistive load) and has a DPDT…
SKU 3G-OTH-37119
Also listed as: 199ABX14 · 199ABX 14
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER Open Power Relay is a surface-mounted relay from the 199 Power Series, featuring an octal base and screw terminal electrical connections. It is rated for 20 A at 110V DC (resistive load) and has a DPDT contact configuration with 8 pins/terminals. This relay is designed for surface mounting and is identified by manufacturer part number 199ABX-14.
Frequently Asked Questions
What is the SCHNEIDER Open Power Relay used for?
The SCHNEIDER Open Power Relay is used for switching and controlling electrical loads in industrial control panels, automation systems, and machinery. Its DPDT configuration and 20 A resistive load rating at 110V DC make it suitable for motor starters, conveyor systems, and HVAC equipment where reliable surface-mounted relay switching is required.
What are the specifications of the SCHNEIDER 199ABX-14 relay?
The SCHNEIDER 199ABX-14 is a surface-mounted open power relay from the 199 Power Series. It has a DPDT contact configuration, octal base, and screw terminal connections. Rated for 40 A current and 120V AC coil voltage, it operates at 20 A at 110V DC (resistive load) and features 8 pins/terminals.
Where to buy the SCHNEIDER 199ABX-14 relay worldwide?
You can source the SCHNEIDER 199ABX-14 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide competitive pricing and reliable supply for this SCHNEIDER 199 Power Series relay.
How to install a surface-mounted SCHNEIDER power relay?
Mount the SCHNEIDER relay securely on a flat surface using the octal base. Connect wires to the screw terminals per the wiring diagram, ensuring the coil voltage matches your 120V AC supply. Verify the load does not exceed 20 A at 110V DC resistive. Always follow standard electrical safety practices and consult the manufacturer's datasheet for torque specifications.
Used in
Common applications for SCHNEIDERSCHNEIDER Products
3G Electric supplies SCHNEIDER surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
