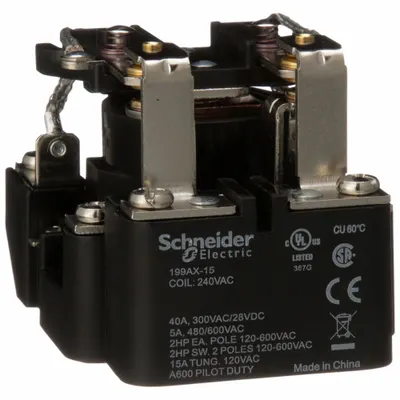

SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 240V AC, DPDT
The SCHNEIDER Open Power Relay is a surface-mounted relay from the 199 Power Series, featuring an octal base and screw terminal electrical connection. It is rated for 40 A at 28V DC (resistive load) and 240V AC, with…
SKU 3G-OTH-37572
Also listed as: 199AX15 · 199AX 15
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER Open Power Relay is a surface-mounted relay from the 199 Power Series, featuring an octal base and screw terminal electrical connection. It is rated for 40 A at 28V DC (resistive load) and 240V AC, with a DPDT contact configuration and 8 pins/terminals (MPN 199AX-15).
Frequently Asked Questions
What is the SCHNEIDER Open Power Relay used for?
The SCHNEIDER Open Power Relay is used for switching high-current loads in industrial control panels, motor starters, and automation systems. Its DPDT configuration and 40 A rating at 28V DC make it suitable for resistive load applications requiring reliable power switching.
What are the specifications of the SCHNEIDER 199AX-15 relay?
The SCHNEIDER 199AX-15 is a surface-mounted open power relay from the 199 Power Series. It has an octal base, screw terminal connection, DPDT contacts, 8 pins, a current rating of 40 A at 28V DC (resistive load), and an AC voltage rating of 240V AC.
Where to buy the SCHNEIDER 199AX-15 relay worldwide?
You can source the SCHNEIDER 199AX-15 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.
How to install a surface-mounted relay like the SCHNEIDER 199AX-15?
Mount the relay securely on a flat surface using the octal base. Connect wires to the screw terminals per the wiring diagram, ensuring torque meets manufacturer specs. Verify coil voltage (240V AC) and load current (40 A max) before energizing. Follow standard electrical safety practices.
Used in
Common applications for SCHNEIDERSCHNEIDER Products
3G Electric supplies SCHNEIDER surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
