SCHNEIDER Enclosed Power Relay: DIN-Rail & Surface Mounted, 30 A Current Rating, 230V AC - Combination DIN-Rail & Surface-Mounted Relays
SCHNEIDERCombination DIN-Rail & Surface-Mounted Relays

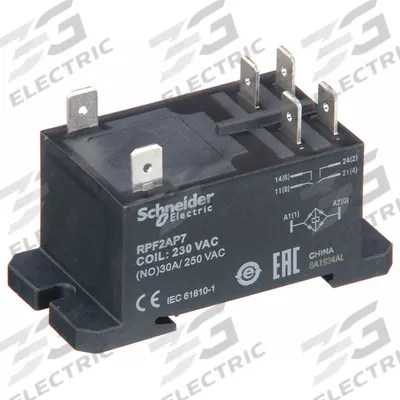

SCHNEIDER Enclosed Power Relay: DIN-Rail & Surface Mounted, 30 A Current Rating, 230V AC

The SCHNEIDER Harmony™ RPF Power Series enclosed power relay (MPN RPF2AP7) is a combination DIN-rail and surface-mounted relay with a square shape and DIN Rail & Top Flange mounting. It features a 1/4 in tab terminal…

SKU 3G-OTH-137589

Brand
SCHNEIDER
Item
Enclosed Power Relay: DIN-Rail & Surface Mounted, 30 A Current Rating, 230V AC
Category
Combination DIN-Rail & Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
RPF2AP7
Type
DPST-NO
AC
230V
Current Rating
30 A
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Harmony™ RPF Power Series enclosed power relay (MPN RPF2AP7) is a combination DIN-rail and surface-mounted relay with a square shape and DIN Rail & Top Flange mounting. It features a 1/4 in tab terminal and is rated for 30 A at 250V AC (NO IEC). This DPST-NO relay operates at 230V AC.

Frequently Asked Questions

What is the SCHNEIDER RPF2AP7 enclosed power relay used for?

The SCHNEIDER Harmony™ RPF Power Series enclosed power relay (RPF2AP7) is used for switching high-current industrial loads up to 30 A at 250V AC. It is commonly applied in motor control, lighting, and HVAC systems where reliable DPST-NO switching and DIN-rail or surface mounting are required.

What are the specifications of the SCHNEIDER RPF2AP7 relay?

The SCHNEIDER RPF2AP7 is a DPST-NO enclosed power relay rated for 30 A at 250V AC (NO IEC) and operates on 230V AC. It features a square shape, DIN Rail & Top Flange mounting, and a 1/4 in tab terminal. It is part of the Harmony™ RPF Power Series.

Where to buy the SCHNEIDER RPF2AP7 relay worldwide?

You can source the SCHNEIDER RPF2AP7 relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we provide this SCHNEIDER Harmony™ RPF Power Series relay to customers globally.

How to install the SCHNEIDER RPF2AP7 relay on a DIN rail?

To install the SCHNEIDER RPF2AP7 relay on a DIN rail, clip the relay onto the rail until it locks securely. For surface mounting, use the top flange holes with appropriate screws. Ensure the 1/4 in tab terminals are properly torqued and the 230V AC supply is disconnected before wiring. Follow standard electrical safety practices.
