SCHNEIDER Flange Mount Relay: Surface (Side Flange) Mounted, 10 A Current Rating - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

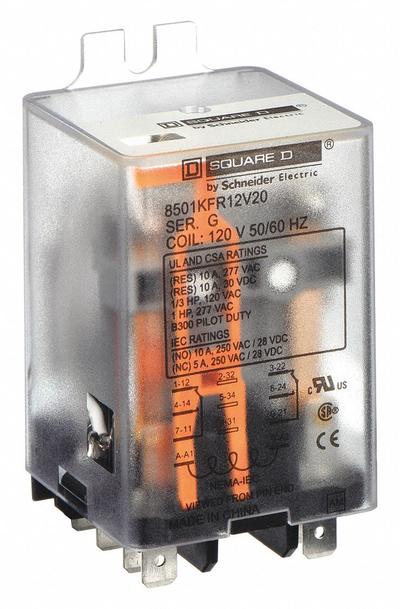

SCHNEIDER Flange Mount Relay: Surface (Side Flange) Mounted, 10 A Current Rating

The SCHNEIDER Flange Mount Relay is a surface (side flange) mounted relay from the Square D Universal Series. It features a square base, push-on terminal electrical connection, and an operating current of 1.5 A at…

SKU 3G-OTH-36983

Brand
SCHNEIDER
Item
Flange Mount Relay: Surface
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
8501KFR12V20
Series
Square D Universal Series
Type
DPDT
AC
120V
Base Type
Square
Current Rating
10 A
Mounting Style
Side Flange
Operating Current
1.5 A at 240V AC (Inductive Load)
Electrical Connection
Push-On Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Flange Mount Relay is a surface (side flange) mounted relay from the Square D Universal Series. It features a square base, push-on terminal electrical connection, and an operating current of 1.5 A at 240V AC (Inductive Load). The relay has a 10 A current rating at 120V AC and a DPDT contact configuration (MPN 8501KFR12V20).

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
