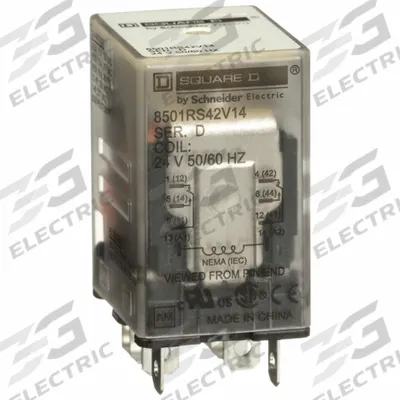

SCHNEIDER General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V AC, DPDT
The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501R Miniature Series, featuring a square base with flat pins and quick-connect electrical connections. It is rated for 15 A at 24V AC…
SKU 3G-OTH-37958
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501R Miniature Series, featuring a square base with flat pins and quick-connect electrical connections. It is rated for 15 A at 24V AC, with a DPDT contact configuration and 8 pins/terminals (MPN 8501RS42V14).
Frequently Asked Questions
What is the SCHNEIDER 8501RS42V14 relay used for?
The SCHNEIDER 8501RS42V14 is a general-purpose relay used for switching industrial loads in control panels, HVAC systems, and automation equipment. Its DPDT configuration and 15 A rating suit motor starters, lighting controls, and signal isolation in 24V AC circuits.
What are the specifications of the SCHNEIDER 8501RS42V14 relay?
This SCHNEIDER Square D 8501R Miniature Series relay has a 15 A current rating, 24V AC coil voltage, DPDT contact configuration, and 8 quick-connect terminals. It features a square base with flat pins and socket mounting for easy replacement in industrial control panels.
Where to buy the SCHNEIDER 8501RS42V14 relay worldwide?
3G Electric supplies the SCHNEIDER 8501RS42V14 relay worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this Square D 8501R Miniature Series relay.
How to install a socket-mounted relay like the SCHNEIDER 8501RS42V14?
To install the SCHNEIDER 8501RS42V14, ensure the socket is wired per the schematic and power is off. Align the relay's flat pins with the socket's slots, press firmly until seated, and secure any retaining clip. Verify coil voltage (24V AC) and wiring before energizing.
