Schneider 3G-OTH-37958 — Technical Specifications

Name: Schneider 3G-OTH-37958 SCHNEIDER General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V AC, DPDT, 8 Pins/Terminals (MPN 8501RS42V14). Key specifications — Brand: SCHNEIDER; Base Type: Square; Mounting Style: Socket; Pin Shape: Flat; Electrical Connection: Quick-Connect; Manufacturer Part Number: 8501RS42V14; Series: Square D 8501R Miniature Series.
Brand: Schneider

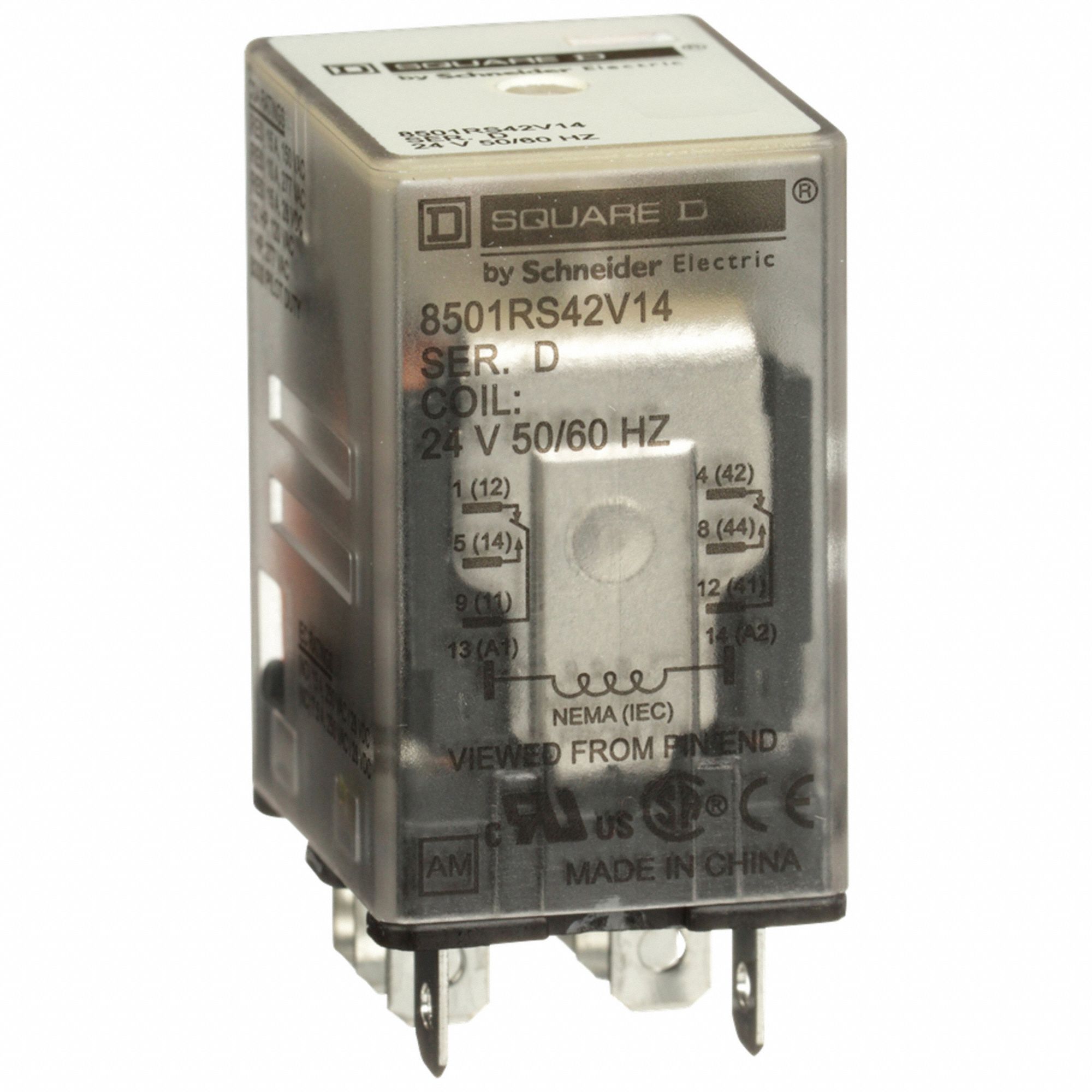

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501R Miniature Series, featuring a square base with flat pins and quick-connect electrical connections. It is rated for 15 A at 24V AC, with a DPDT contact configuration and 8 pins/terminals (MPN 8501RS42V14).

View Product & Quote

Technical Specifications

Parameter	Value
AC	24V
Type	DPDT
Brand	SCHNEIDER
Series	Square D 8501R Miniature Series
Base Type	Square
Pin Shape	Flat
Current Rating	15 A
Mounting Style	Socket
Pins/Terminals	8
Electrical Connection	Quick-Connect
Manufacturer Part Number	8501RS42V14
