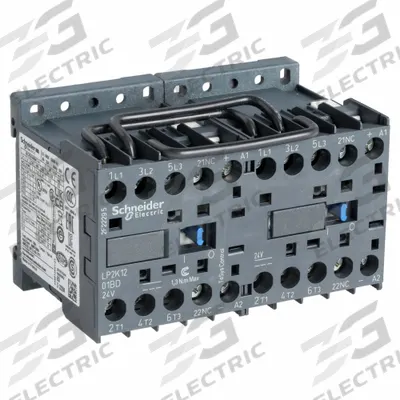

SCHNEIDER Miniature IEC Magnetic Contactor: Reversing, 3 Poles, 3NO Contacts, 12 A - Miniature, Reversing IEC Contactors
SCHNEIDERMiniature, Reversing IEC Contactors

SCHNEIDER Miniature IEC Magnetic Contactor: Reversing, 3 Poles, 3NO Contacts, 12 A

The SCHNEIDER Miniature IEC Magnetic Contactor: Reversing (MPN LP2K1201BD) is a 3-pole, 3NO contact reversing contactor rated for 12 A with a 24V DC coil. This miniature IEC contactor does not include integrated…

SKU 3G-OTH-41516

Brand
SCHNEIDER
Item
Miniature IEC Magnetic Contactor: Reversing, 3 Poles, 3NO Contacts, 12 A
Category
Miniature, Reversing IEC Contactors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
LP2K1201BD
Type
12 A
Poles
3
DC Coil
24V
Contacts
3NO
Integrated Surge Suppression
No
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Miniature IEC Magnetic Contactor: Reversing (MPN LP2K1201BD) is a 3-pole, 3NO contact reversing contactor rated for 12 A with a 24V DC coil. This miniature IEC contactor does not include integrated surge suppression.

Frequently Asked Questions

What is the SCHNEIDER LP2K1201BD reversing contactor used for?

The SCHNEIDER LP2K1201BD is a miniature IEC reversing magnetic contactor used to control the forward and reverse rotation of three-phase motors in industrial applications such as conveyors, pumps, and hoists. It features 3 poles, 3NO contacts, a 12 A rating, and a 24V DC coil without integrated surge suppression.

What are the specifications of the SCHNEIDER LP2K1201BD contactor?

The SCHNEIDER LP2K1201BD is a 3-pole, 3NO contact reversing contactor rated for 12 A with a 24V DC coil. It is a miniature IEC magnetic contactor from SCHNEIDER and does not include integrated surge suppression. The manufacturer part number is LP2K1201BD.

Where to buy the SCHNEIDER LP2K1201BD contactor worldwide?

You can source the SCHNEIDER LP2K1201BD reversing contactor through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this SCHNEIDER miniature contactor.

How to select the right SCHNEIDER reversing contactor for a motor?

To select the correct SCHNEIDER reversing contactor like the LP2K1201BD, match the contactor's rated current (12 A) and coil voltage (24V DC) to your motor's full-load current and control system. Ensure the contactor's pole configuration (3 poles, 3NO) suits your reversing application. Consult SCHNEIDER's selection guide for motor power ratings.
