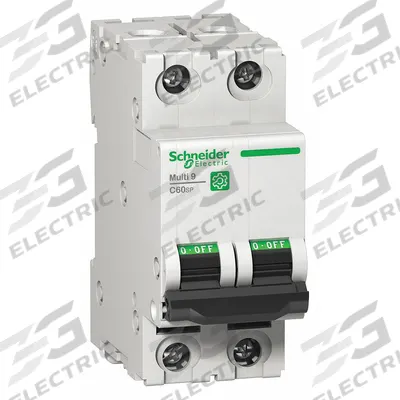

SCHNEIDER Supplementary Protector: 50 A Amps, 10kA at 240V AC, Screw Clamp, C60SP - C-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
SCHNEIDERC-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors

SCHNEIDER Supplementary Protector: 50 A Amps, 10kA at 240V AC, Screw Clamp, C60SP

The SCHNEIDER IEC Supplementary Protector is a C-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 50 A Amps. Part of the C60SP series (MPN M9F22250), it features a Max. AIR Rating of 10kA at 240V…

SKU 3G-OTH-21070

Brand
SCHNEIDER
Item
Supplementary Protector: 50 A Amps, 10kA at 240V AC, Screw Clamp, C60SP
Category
C-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
M9F22250
Series
C60SP
Type
10kA at 240V AC, Screw Clamp, C60SP, C
Curve Type
C
Max. AIR Rating
10kA at 240V AC
AC Voltage Rating
240/415/440V AC
DC Voltage Rating
Not Rated
Terminal Connection
Screw Clamp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER IEC Supplementary Protector is a C-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 50 A Amps. Part of the C60SP series (MPN M9F22250), it features a Max. AIR Rating of 10kA at 240V AC and an AC Voltage Rating of 240/415/440V AC. The terminal connection is Screw Clamp, and it is not rated for DC voltage.

Frequently Asked Questions

What is the SCHNEIDER C60SP supplementary protector used for?

The SCHNEIDER C60SP supplementary protector (MPN M9F22250) protects branch circuits and equipment from overloads and short circuits in industrial control panels, HVAC systems, and machinery. Its C-curve trip characteristic suits moderate inrush loads like motors and transformers. 3G Electric supplies this UL1077 device for worldwide applications.

What are the specifications of the SCHNEIDER M9F22250 supplementary protector?

The SCHNEIDER M9F22250 is a 50 A, 2-pole C60SP supplementary protector with a C-curve, 10kA interrupting rating at 240V AC, and AC voltage rating of 240/415/440V AC. It uses screw-clamp terminals, is not DC-rated, and mounts on DIN rail per UL1077. 3G Electric sources this genuine SCHNEIDER part globally.

Where to buy SCHNEIDER C60SP supplementary protectors worldwide?

3G Electric supplies the SCHNEIDER C60SP supplementary protector (M9F22250) to customers worldwide. As a global industrial sourcing partner, we handle logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this 50 A, C-curve, 2-pole UL1077 device.

How to install a SCHNEIDER C60SP DIN rail supplementary protector?

Snap the SCHNEIDER C60SP onto a standard 35 mm DIN rail until it locks. Connect line and load wires to the screw-clamp terminals, torquing to the manufacturer's specification (typically 2–3.5 Nm). Ensure the circuit is de-energized before installation. 3G Electric provides genuine SCHNEIDER devices for reliable protection.
