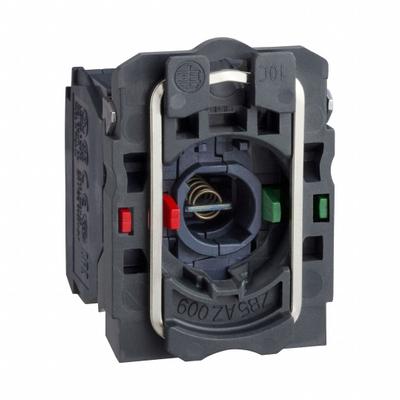

SCHNEIDER Lamp Module and Contact Block: 22 mm Panel Mounting Size, 1NO/1NC - Contact & Light Block Assemblies
SCHNEIDERContact & Light Block Assemblies

SCHNEIDER Lamp Module and Contact Block: 22 mm Panel Mounting Size, 1NO/1NC

The SCHNEIDER ELECTRIC Lamp Module and Contact Block (MPN ZB5AW065) is a 22 mm panel-mounting contact and light block assembly compatible with the XB5 series. It features a 1NO/1NC contact configuration and an…

SKU 3G-OTH-30730

Brand
SCHNEIDER
Item
Lamp Module and Contact Block: 22 mm Panel Mounting Size, 1NO/1NC
Category
Contact & Light Block Assemblies
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
ZB5AW065
Type
1NO/1NC, Incandescent
Includes Bulb
No Bulb Included
Lamp Module Voltage
≤ 250V AC/DC
Compatible with Series
XB5
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER ELECTRIC Lamp Module and Contact Block (MPN ZB5AW065) is a 22 mm panel-mounting contact and light block assembly compatible with the XB5 series. It features a 1NO/1NC contact configuration and an incandescent lamp module rated for ≤ 250V AC/DC. No bulb is included with this unit.
