SCHNEIDER Lamp Module and Contact Block: 22 mm Panel Mounting Size, 2NO, White - Contact & Light Block Assemblies
SCHNEIDERContact & Light Block Assemblies

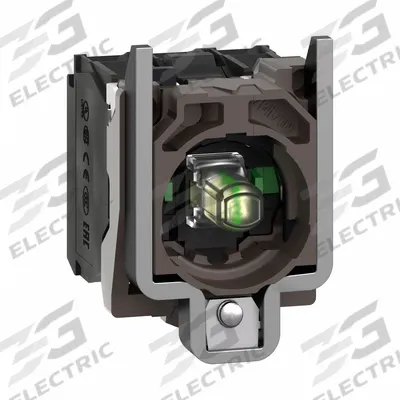

SCHNEIDER Lamp Module and Contact Block: 22 mm Panel Mounting Size, 2NO, White

The SCHNEIDER ELECTRIC Lamp Module and Contact Block is a 22 mm panel mounting size contact and light block assembly from the XB4 series. It includes a white LED bulb and features a 2NO contact configuration…

SKU 3G-OTH-30797

Brand
SCHNEIDER
Item
Lamp Module and Contact Block: 22 mm Panel Mounting Size, 2NO, White
Category
Contact & Light Block Assemblies
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
ZB4BW0B13
Type
2NO, White, LED
Includes Bulb
Bulb Included
Lamp Module Voltage
24V AC/DC
Compatible with Series
XB4
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER ELECTRIC Lamp Module and Contact Block is a 22 mm panel mounting size contact and light block assembly from the XB4 series. It includes a white LED bulb and features a 2NO contact configuration, operating at 24V AC/DC.

Frequently Asked Questions

What is the SCHNEIDER ZB4BW0B13 lamp module and contact block used for?

The SCHNEIDER ZB4BW0B13 is a 22 mm panel-mount contact and light block assembly from the XB4 series. It provides visual indication and switching (2NO) for industrial control panels, machinery, and automation systems. The white LED signals equipment status at 24V AC/DC.

What are the specifications of the SCHNEIDER ZB4BW0B13?

The SCHNEIDER ZB4BW0B13 is a 22 mm panel-mount lamp module and contact block. It includes a white LED bulb, 2NO contact configuration, and operates at 24V AC/DC. It is compatible with the XB4 series and has manufacturer part number ZB4BW0B13.

Where to buy SCHNEIDER ZB4BW0B13 worldwide?

You can source the SCHNEIDER ZB4BW0B13 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.

How to install the SCHNEIDER ZB4BW0B13 lamp module?

Install the SCHNEIDER ZB4BW0B13 into a 22 mm panel cutout. Secure the contact block to the back of the operator, then connect wiring to the 2NO terminals per the XB4 series manual. Ensure power is off and voltage matches 24V AC/DC before operation.
