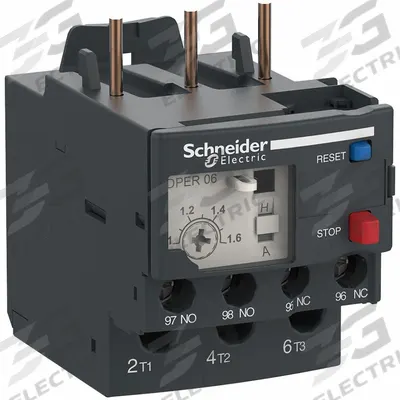

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC - IEC Thermal Overload Relays
SCHNEIDERIEC Thermal Overload Relays

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC

The SCHNEIDER IEC Overload Relay: Thermal Protection (MPN DPER06) is a three-pole thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC…

SKU 3G-OTH-40209

Brand
SCHNEIDER
Item
Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC
Category
IEC Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
DPER06
Type
1NO/1NC, Phase Loss Sensitivity
Poles
3
Compatible Contactors
TeSys Easy (9 to 32 Amp Models)
Auxiliary Contact Form
1NO/1NC
Maximum Voltage Rating
690V AC
Phase Loss Sensitivity
Yes
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)
Terminal Connection Type
Screw Clamp Terminals
Compatible Contactor Series
Easy TeSys
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER IEC Overload Relay: Thermal Protection (MPN DPER06) is a three-pole thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts, screw clamp terminals, and a maximum voltage rating of 690V AC. Designed for use with TeSys Easy contactors (9 to 32 Amp models), it includes phase loss sensitivity.

Frequently Asked Questions

What is the SCHNEIDER DPER06 overload relay used for?

The SCHNEIDER DPER06 is a three-pole IEC thermal overload relay used to protect motors from overcurrent and phase loss conditions. It integrates bimetallic elements and is designed for use with TeSys Easy contactors (9 to 32 Amp models) in industrial motor control applications.

What are the specifications of the SCHNEIDER DPER06 overload relay?

The SCHNEIDER DPER06 is a three-pole thermal overload relay with 1NO/1NC auxiliary contacts, screw clamp terminals, and a maximum voltage rating of 690V AC. It includes phase loss sensitivity and integrated bimetallic elements, so no separate thermal units are required. It is compatible with TeSys Easy contactors.

Where to buy the SCHNEIDER DPER06 overload relay worldwide?

You can source the SCHNEIDER DPER06 overload relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.

How to select the correct SCHNEIDER overload relay for a motor?

To select the correct SCHNEIDER overload relay, match the relay's current range to the motor full-load current and ensure compatibility with your contactor series. The DPER06 is designed for TeSys Easy contactors (9 to 32 Amp models) and includes phase loss sensitivity for three-phase motor protection.
