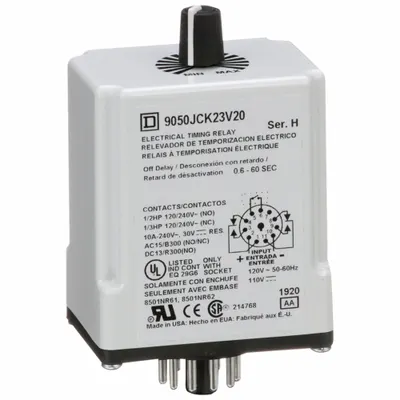

SCHNEIDER 9050JCK23V20 Socket-Mounted Time Delay Relay, 120V DC, 10 A, 11 Pins
The SCHNEIDER Single Function Time Delay Relay is a socket-mounted relay with an 11-pin/terminal configuration. It operates on 120V DC and has an AC contact rating of 10 A @ 120/240V. This component is identified by…
SKU 3G-OTH-41032
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER Single Function Time Delay Relay is a socket-mounted relay with an 11-pin/terminal configuration. It operates on 120V DC and has an AC contact rating of 10 A @ 120/240V. This component is identified by manufacturer part number 9050JCK23V20.
Frequently Asked Questions
What is the SCHNEIDER 9050JCK23V20 time delay relay used for?
The SCHNEIDER 9050JCK23V20 is a single-function time delay relay used in industrial control panels to delay or sequence electrical operations. Common applications include motor start/stop timing, conveyor belt sequencing, and HVAC system control. It is socket-mounted with 11 pins for easy installation and replacement.
What are the specifications of the SCHNEIDER 9050JCK23V20 relay?
The SCHNEIDER 9050JCK23V20 is a socket-mounted time delay relay with an 11-pin/terminal configuration. It operates on 120V DC and has an AC contact rating of 10 A at 120/240V. The manufacturer part number is 9050JCK23V20. It is designed for single-function timing applications in industrial environments.
Where to buy the SCHNEIDER 9050JCK23V20 relay worldwide?
You can source the SCHNEIDER 9050JCK23V20 time delay relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time. We supply genuine SCHNEIDER components for industrial applications.
How to install the SCHNEIDER 9050JCK23V20 socket-mounted relay?
To install the SCHNEIDER 9050JCK23V20, first ensure the socket is wired correctly per the 11-pin diagram. Insert the relay firmly into the socket until it clicks. Verify the control voltage is 120V DC and the load does not exceed 10 A at 120/240V AC. Always de-energize the circuit before installation or removal.
Used in
Common applications for SCHNEIDERSCHNEIDER Products
3G Electric supplies SCHNEIDER socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
