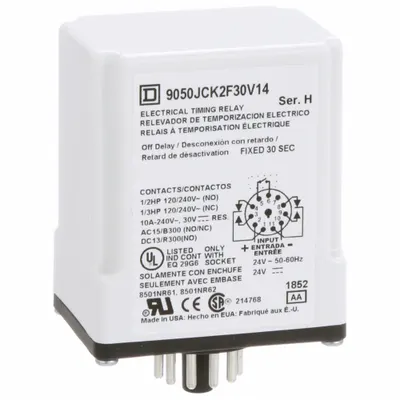

SCHNEIDER Time Delay Relay: Socket Mounted, 24V AC/DC, 10 A, 11 Pins/Terminals
The SCHNEIDER Time Delay Relay is a socket-mounted relay with an 11-pin terminal configuration, operating on 24V AC/DC. It features a contact rating of 10 A @ 120/240V AC and offers an adjustable timing range of 0.1…
SKU 3G-OTH-43107
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER Time Delay Relay is a socket-mounted relay with an 11-pin terminal configuration, operating on 24V AC/DC. It features a contact rating of 10 A @ 120/240V AC and offers an adjustable timing range of 0.1 to 30 seconds. This component is designed for industrial control applications requiring precise timing functions.
Frequently Asked Questions
What is the SCHNEIDER Time Delay Relay used for?
The SCHNEIDER Time Delay Relay is used in industrial control panels to introduce a precise adjustable delay between an input signal and output activation. Common applications include motor start sequencing, conveyor timing, and lighting control in manufacturing and process automation environments.
What are the specifications of the SCHNEIDER Time Delay Relay 9050JCK2F30V14?
This SCHNEIDER relay is socket-mounted with 11 pins, operates on 24V AC/DC, and has a contact rating of 10 A at 120/240V AC. The adjustable timing range is 0.1 to 30 seconds. It is designed for industrial control circuits requiring reliable timing functions.
Where to buy the SCHNEIDER Time Delay Relay worldwide?
3G Electric supplies the SCHNEIDER Time Delay Relay worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time on the 9050JCK2F30V14.
How to install a socket-mounted time delay relay?
Ensure power is off. Insert the relay into the matching 11-pin socket, aligning the pins correctly. Wire the socket per the relay's wiring diagram, typically connecting the coil to 24V AC/DC and the contacts to the load. Set the timing dial to the desired delay between 0.1 and 30 seconds.
Used in
Common applications for SCHNEIDERSCHNEIDER Products
3G Electric supplies SCHNEIDER socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
