Siemens Molded Case Circuit Breaker: 70 A Amps, 42kA at 480V AC, Fixed, Load Side Lug - ED-Frame Siemens Molded Case Circuit Breakers
SiemensED-Frame Siemens Molded Case Circuit Breakers

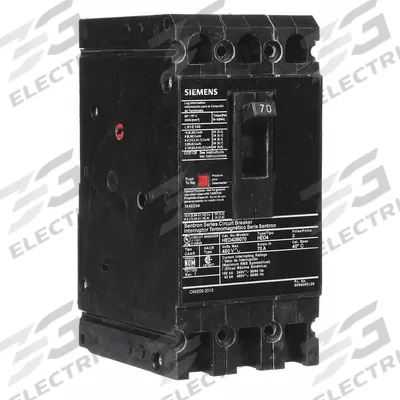

Siemens Molded Case Circuit Breaker: 70 A Amps, 42kA at 480V AC, Fixed, Load Side Lug

The SIEMENS Molded Case Circuit Breaker is a 70 A ED-Frame unit from the HED4 series, rated for a maximum interrupting capacity of 42kA at 480V AC. It features a fixed instantaneous trip, ABC phase connection, and…

SKU 3G-OTH-22596

Brand
Siemens
Item
Molded Case Circuit Breaker: 70 A Amps, 42kA at 480V AC, Fixed, Load Side Lug
Category
ED-Frame Siemens Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
HED43B070
Series
HED4
Type
42kA at 480V AC, Fixed, Load Side Lug, ABC, HED4
Max. AIR Rating
42kA at 480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Load Side Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SIEMENS Molded Case Circuit Breaker is a 70 A ED-Frame unit from the HED4 series, rated for a maximum interrupting capacity of 42kA at 480V AC. It features a fixed instantaneous trip, ABC phase connection, and load-side lug terminal connection (MPN HED43B070).

Frequently Asked Questions

What is the SIEMENS HED43B070 molded case circuit breaker used for?

The SIEMENS HED43B070 is a 70 A ED-frame molded case circuit breaker used for overcurrent protection in industrial power distribution panels, motor control centers, and branch circuits. It is suitable for applications requiring a fixed instantaneous trip and ABC phase connection, with a maximum interrupting rating of 42kA at 480V AC.

What are the specifications of the SIEMENS HED43B070 circuit breaker?

The SIEMENS HED43B070 is a 70 A molded case circuit breaker from the HED4 series. It has a maximum AIR rating of 42kA at 480V AC, fixed instantaneous trip, ABC phase connection, and load-side lug terminal connection. The manufacturer part number is HED43B070.

Where to buy the SIEMENS HED43B070 circuit breaker worldwide?

3G Electric supplies the SIEMENS HED43B070 molded case circuit breaker worldwide. As a global industrial equipment distributor established in 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to select the correct SIEMENS HED4 series circuit breaker for an application?

To select the correct SIEMENS HED4 series circuit breaker, verify the required current rating (e.g., 70 A), voltage (480V AC), interrupting capacity (42kA), phase connection (ABC), and terminal type (load-side lug). The HED43B070 is a fixed instantaneous trip model. Consult the Siemens ED-frame selection guide for coordination studies.
