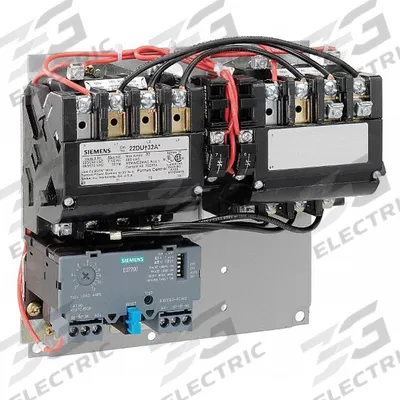

Siemens Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 1, 27 A - Reversing Starters with Electronic Overloads
SiemensReversing Starters with Electronic Overloads

Siemens Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 1, 27 A

The SIEMENS NEMA Magnetic Motor Starter is a reversing starter with electronic overloads, featuring three poles, NEMA Size 1, and a 27 A rating. It operates with a 380-440/440-480V AC coil voltage and includes a…

SKU 3G-OTH-41785

Brand
Siemens
Item
Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 1, 27 A
Category
Reversing Starters with Electronic Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
22DUB32AH
Type
NEMA Size 1, 27 A
Phase
Three
Poles
3
AC Coil
480V
Coil Voltage
380-440/440-480V AC
Signaling Features
Pilot Light
Auxiliary Contact Form
1NO
Thermal Units Required
None (Not Applicable to Electronic Overloads)
Terminal Connection Type
Screw Terminals
Auxiliary Contacts Included
1NO
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SIEMENS NEMA Magnetic Motor Starter is a reversing starter with electronic overloads, featuring three poles, NEMA Size 1, and a 27 A rating. It operates with a 380-440/440-480V AC coil voltage and includes a pilot light, 1NO auxiliary contact, and screw terminals. Thermal units are not required as the overload is electronic.

Frequently Asked Questions

What is the SIEMENS NEMA Magnetic Motor Starter 22DUB32AH used for?

This reversing starter with electronic overload is used to control the direction of three-phase AC motors in industrial applications such as conveyors, hoists, and pumps. It provides forward/reverse operation and overload protection without requiring thermal units.

What are the specifications of the SIEMENS 22DUB32AH motor starter?

The SIEMENS 22DUB32AH is a NEMA Size 1 reversing starter rated 27 A with 3 poles. It has a 380-440/440-480V AC coil voltage, includes a pilot light and 1NO auxiliary contact, and uses screw terminals. The electronic overload eliminates the need for thermal units.

Where to buy the SIEMENS 22DUB32AH motor starter worldwide?

3G Electric supplies the SIEMENS 22DUB32AH reversing starter worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time.

How to select the correct overload for the SIEMENS 22DUB32AH starter?

The SIEMENS 22DUB32AH uses an electronic overload, so no separate thermal units are required. To select the correct setting, match the motor full-load current to the overload adjustment range specified in the starter's manual. Always consult the manufacturer's documentation for precise configuration.
