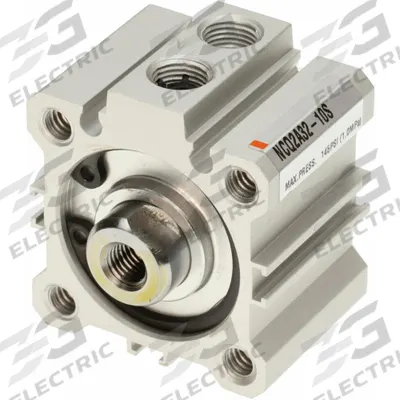

SMC Compact Cylinder: 32 mm Bore Dia, 15 mm Stroke Lg, Tapped Hole Mounting - Basic Mount Compact Cylinders
SMCBasic Mount Compact Cylinders

SMC Compact Cylinder: 32 mm Bore Dia, 15 mm Stroke Lg, Tapped Hole Mounting

The SMC NCQ2 Compact Cylinder (SKU 826FZ9) is a basic mount, single-rod cylinder with a 32 mm bore diameter and 15 mm stroke length. It features a tapped hole mounting style, a rotating rod design, and is constructed…

SKU 3G-OTH-189368

Brand
SMC
Item
Compact Cylinder: 32 mm Bore Dia, 15 mm Stroke Lg, Tapped Hole Mounting
Category
Basic Mount Compact Cylinders
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SMC
Manufacturer Part Number
NCQ2A32-15DMZ
Type
Tapped Hole Mounting, Aluminum
NPT
1/8 in
Stroke Lg
15 mm
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SMC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SMC NCQ2 Compact Cylinder (SKU 826FZ9) is a basic mount, single-rod cylinder with a 32 mm bore diameter and 15 mm stroke length. It features a tapped hole mounting style, a rotating rod design, and is constructed from aluminum with a 1/8 in NPT port. This model (MPN NCQ2A32-15DMZ) is part of SMC's NCQ2 series.

Frequently Asked Questions

What is the SMC NCQ2 compact cylinder used for?

The SMC NCQ2 compact cylinder is used in industrial automation for light-duty pushing, pulling, or clamping applications. Its 32 mm bore and 15 mm stroke suit tight spaces, while the rotating rod design allows angular misalignment. Common in packaging, assembly, and material handling equipment.

What are the specifications of the SMC NCQ2A32-15DMZ?

The SMC NCQ2A32-15DMZ is a basic mount compact cylinder with a 32 mm bore diameter and 15 mm stroke length. It has a tapped hole mounting style, single rotating rod, aluminum construction, and 1/8 in NPT port. Part of SMC's NCQ2 series, it is a single-rod, double-acting pneumatic cylinder.

Where to buy the SMC NCQ2 compact cylinder worldwide?

You can source the SMC NCQ2 compact cylinder from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this SMC model.

How to install the SMC NCQ2 compact cylinder?

Mount the SMC NCQ2 cylinder using the tapped holes with appropriate bolts. Connect 1/8 in NPT pneumatic lines to the ports. Ensure the rotating rod is aligned with the load to avoid binding. Use regulated, filtered air within SMC's recommended pressure range. Always follow standard pneumatic safety practices.
