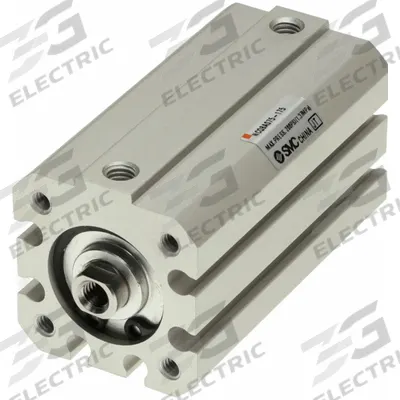

SMC Compact Cylinder: 3/4 in Bore Dia, 1 1/2 in Stroke Lg, Tapped Hole Mounting - Basic Mount Compact Cylinders
SMCBasic Mount Compact Cylinders

SMC Compact Cylinder: 3/4 in Bore Dia, 1 1/2 in Stroke Lg, Tapped Hole Mounting

The SMC NCQ8A075-150 is a basic mount compact cylinder from the NCQ8 series, featuring a 3/4 in bore diameter and 1 1/2 in stroke length. It is constructed with an aluminum body and includes a tapped hole mounting…

SKU 3G-OTH-189367

Brand
SMC
Item
Compact Cylinder: 3/4 in Bore Dia, 1 1/2 in Stroke Lg, Tapped Hole Mounting
Category
Basic Mount Compact Cylinders
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SMC
Manufacturer Part Number
NCQ8A075-150
Type
Tapped Hole Mounting, Aluminum, NCQ8
Stroke Lg
1 1/2 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SMC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SMC NCQ8A075-150 is a basic mount compact cylinder from the NCQ8 series, featuring a 3/4 in bore diameter and 1 1/2 in stroke length. It is constructed with an aluminum body and includes a tapped hole mounting style, single rod, and rotating rod configuration. This product is manufactured by SMC under part number NCQ8A075-150.

Frequently Asked Questions

What is the SMC NCQ8A075-150 compact cylinder used for?

The SMC NCQ8A075-150 is a basic mount compact cylinder used in industrial automation for linear motion applications. Its 3/4 in bore and 1 1/2 in stroke suit tight spaces, while the rotating rod and tapped hole mounting simplify integration into packaging, assembly, and material handling systems.

What are the specifications of the SMC NCQ8A075-150?

The SMC NCQ8A075-150 has a 3/4 in bore diameter and 1 1/2 in stroke length. It features a tapped hole mounting style, single rod, and rotating rod configuration. The body is aluminum, and it is part of the NCQ8 series. The manufacturer part number is NCQ8A075-150.

Where to buy the SMC NCQ8A075-150 worldwide?

You can source the SMC NCQ8A075-150 compact cylinder through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine SMC components to any region.

How to install the SMC NCQ8A075-150 compact cylinder?

Mount the SMC NCQ8A075-150 using its tapped holes with appropriate bolts, ensuring the rotating rod aligns with the load. Connect pneumatic lines per SMC guidelines, using clean, dry air within rated pressure. Verify stroke clearance and rod alignment to prevent binding. Consult the NCQ8 series manual for torque specs.
