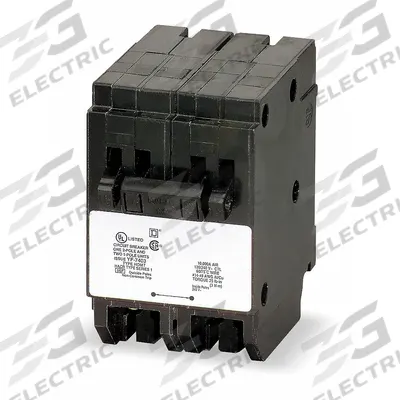

SQUARE D Miniature Circuit Breaker: 20/30 A, 120/240V AC, Single Phase - HOM Series, Plug-In Square D Miniature Circuit Breakers
SQUARE DHOM Series, Plug-In Square D Miniature Circuit Breakers

SQUARE D Miniature Circuit Breaker: 20/30 A, 120/240V AC, Single Phase

The SQUARE D HOMT2020230 is a HOM Series plug-in miniature circuit breaker from the SQUARE D brand, rated for 20/30 A at 120/240V AC single phase. It features a maximum AIR rating of 10kA at 120/240V AC and is…

SKU 3G-OTH-20951

Brand
SQUARE D
Item
Miniature Circuit Breaker: 20/30 A, 120/240V AC, Single Phase
Category
HOM Series, Plug-In Square D Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
HOMT2020230
Type
Single Phase, 10kA at 120/240V AC
AC
120/240V
Amps
20/30 A
Phase
Single
Poles
2
For Use With
Homeline Load Center
Max. AIR Rating
10kA at 120/240V AC
AC Voltage Rating
120/240V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D HOMT2020230 is a HOM Series plug-in miniature circuit breaker from the SQUARE D brand, rated for 20/30 A at 120/240V AC single phase. It features a maximum AIR rating of 10kA at 120/240V AC and is designed for use with Homeline Load Centers.

Frequently Asked Questions

What is the SQUARE D HOMT2020230 miniature circuit breaker used for?

The SQUARE D HOMT2020230 is a plug-in miniature circuit breaker designed for overload and short-circuit protection in residential and light commercial electrical panels. It is specifically intended for use with Homeline Load Centers, providing reliable branch circuit protection in single-phase systems up to 120/240V AC.

What are the specifications of the SQUARE D HOMT2020230?

The SQUARE D HOMT2020230 is a 2-pole, single-phase miniature circuit breaker rated for 20/30 A at 120/240V AC. It has a maximum AIR rating of 10kA at 120/240V AC and is designed for plug-in installation in Homeline Load Centers. The manufacturer part number is HOMT2020230.

Where to buy the SQUARE D HOMT2020230 worldwide?

3G Electric supplies the SQUARE D HOMT2020230 miniature circuit breaker to customers worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us to place an order or request a quote for this SQUARE D HOM series breaker.

How to install the SQUARE D HOMT2020230 in a Homeline Load Center?

To install the SQUARE D HOMT2020230, ensure the load center is de-energized. Align the breaker's plug-in tabs with the bus bar slots in the Homeline Load Center and press firmly until it snaps into place. Connect the circuit wires to the breaker terminals, torque to manufacturer specifications, and verify proper seating before restoring power.
