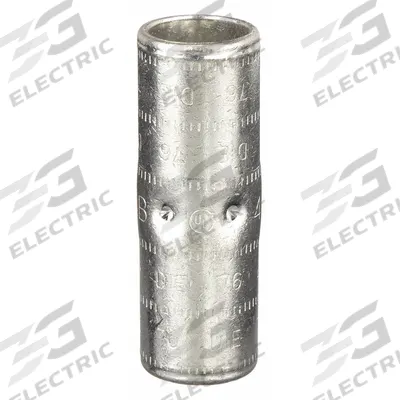

THOMAS & BETTS Open Barrel Splice: 400 kcmil Wire Size, Blue Code, 2.75 in - Crimped Butt Splice Compression Connectors
THOMAS & BETTSCrimped Butt Splice Compression Connectors

THOMAS & BETTS Open Barrel Splice: 400 kcmil Wire Size, Blue Code, 2.75 in

The THOMAS & BETTS Open Barrel Splice (MPN 54516) is a crimped butt splice compression connector designed for 400 kcmil wire size. It features a copper barrel, a blue color code, and a Die Code of 76, with a length…

SKU 3G-OTH-17860

Brand
THOMAS & BETTS
Item
Open Barrel Splice: 400 kcmil Wire Size, Blue Code, 2.75 in
Category
Crimped Butt Splice Compression Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

THOMAS & BETTS
Manufacturer Part Number
54516
Type
Blue Code, 2.75 in, Copper Barrel
Die
76
Die Code
76
Color Code
Blue
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

THOMAS & BETTS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The THOMAS & BETTS Open Barrel Splice (MPN 54516) is a crimped butt splice compression connector designed for 400 kcmil wire size. It features a copper barrel, a blue color code, and a Die Code of 76, with a length of 2.75 inches.

Frequently Asked Questions

What is the THOMAS & BETTS Open Barrel Splice 54516 used for?

The THOMAS & BETTS Open Barrel Splice 54516 is a crimped butt splice compression connector used to join 400 kcmil copper conductors in industrial power distribution, switchgear, and heavy equipment wiring. It provides a reliable, low-resistance connection for high-current applications.

What are the specifications of the THOMAS & BETTS Open Barrel Splice 54516?

The THOMAS & BETTS Open Barrel Splice 54516 is rated for 400 kcmil wire size, has a copper barrel, blue color code, Die Code 76, and a length of 2.75 inches. The manufacturer part number is 54516. It is designed for use with THOMAS & BETTS compression tooling and dies.

Where to buy the THOMAS & BETTS Open Barrel Splice 54516 worldwide?

3G Electric supplies the THOMAS & BETTS Open Barrel Splice 54516 worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time. We source and deliver this connector to any country.

How to install the THOMAS & BETTS Open Barrel Splice 54516?

To install the THOMAS & BETTS Open Barrel Splice 54516, strip the 400 kcmil conductor to the appropriate length, insert it into the copper barrel, and crimp using a compatible compression tool with Die Code 76. Follow standard industry practices for crimped butt splices to ensure a secure connection.
