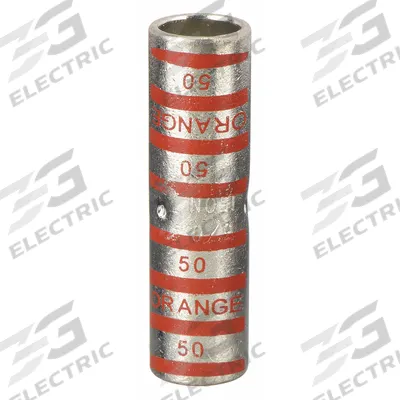

THOMAS & BETTS Open Barrel Splice: 3/0 AWG Wire Size, Orange Code, 2.25 in - Crimped Butt Splice Compression Connectors
THOMAS & BETTSCrimped Butt Splice Compression Connectors

THOMAS & BETTS Open Barrel Splice: 3/0 AWG Wire Size, Orange Code, 2.25 in

The THOMAS & BETTS Open Barrel Splice (MPN 54811) is a crimped butt splice compression connector designed for 3/0 AWG wire size. It features a copper barrel, an orange color code, and a Die Code of 50, with a length…

SKU 3G-OTH-17411

Brand
THOMAS & BETTS
Item
Open Barrel Splice: 3/0 AWG Wire Size, Orange Code, 2.25 in
Category
Crimped Butt Splice Compression Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

THOMAS & BETTS
Manufacturer Part Number
54811
Type
Orange Code, 2.25 in, Copper Barrel
Die
50
Die Code
50
Color Code
Orange
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

THOMAS & BETTS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The THOMAS & BETTS Open Barrel Splice (MPN 54811) is a crimped butt splice compression connector designed for 3/0 AWG wire size. It features a copper barrel, an orange color code, and a Die Code of 50, with a length of 2.25 inches.

Frequently Asked Questions

What is the THOMAS & BETTS 54811 open barrel splice used for?

The THOMAS & BETTS 54811 open barrel splice is a crimped butt splice compression connector used to join two 3/0 AWG copper conductors in electrical power distribution, industrial control panels, and heavy equipment wiring. It provides a reliable, low-resistance connection when compressed with a die code 50 tool.

What are the specifications of the THOMAS & BETTS 54811 open barrel splice?

The THOMAS & BETTS 54811 open barrel splice is designed for 3/0 AWG wire size, has a copper barrel, orange color code, die code 50, and a length of 2.25 inches. It is a crimped butt splice compression connector manufactured by THOMAS & BETTS.

Where to buy THOMAS & BETTS 54811 open barrel splice worldwide?

3G Electric supplies the THOMAS & BETTS 54811 open barrel splice worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time.

How to install the THOMAS & BETTS 54811 open barrel splice?

To install the THOMAS & BETTS 54811 open barrel splice, strip the insulation from both 3/0 AWG conductors, insert each into the copper barrel, and compress using a crimping tool with die code 50. Ensure the orange color code matches the die for correct compression. Follow standard electrical safety practices.
