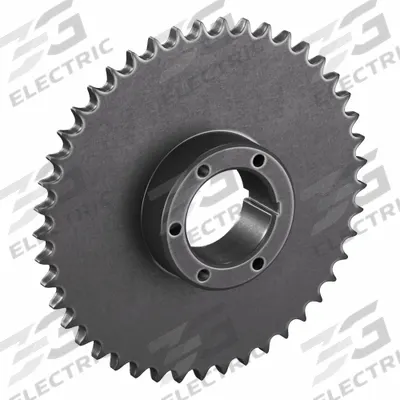

TSUBAKI Sprocket: For 60 Chain, 45 Teeth, 10.752 in Pitch Dia, 11.175 in Outside Dia - Size 60 Bushed-Bore Roller Chain Sprockets
TSUBAKISize 60 Bushed-Bore Roller Chain Sprockets

TSUBAKI Sprocket: For 60 Chain, 45 Teeth, 10.752 in Pitch Dia, 11.175 in Outside Dia

The TSUBAKI Sprocket is a Size 60 bushed-bore roller chain sprocket designed for 60 chain, featuring 45 teeth with a 10.752 in pitch diameter and an 11.175 in outside diameter. Constructed from steel, this sprocket…

SKU 3G-OTH-126211

Brand
TSUBAKI
Item
Sprocket: For 60 Chain, 45 Teeth, 10.752 in Pitch Dia, 11.175 in Outside Dia
Category
Size 60 Bushed-Bore Roller Chain Sprockets
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TSUBAKI
Manufacturer Part Number
60Q45
Type
Steel
Teeth
45
Pitch Dia
10.752 in
Outside Dia
11.175 in
Required Bushing Series
Q1
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TSUBAKI Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TSUBAKI Sprocket is a Size 60 bushed-bore roller chain sprocket designed for 60 chain, featuring 45 teeth with a 10.752 in pitch diameter and an 11.175 in outside diameter. Constructed from steel, this sprocket requires a Q1 bushing series and is identified by manufacturer part number 60Q45.

Frequently Asked Questions

What is the TSUBAKI 60Q45 sprocket used for?

The TSUBAKI 60Q45 sprocket is used in power transmission systems with Size 60 roller chain. It is commonly applied in conveyors, packaging machinery, and industrial drives where reliable torque transfer and precise chain engagement are required.

What are the specifications of the TSUBAKI 60Q45 sprocket?

The TSUBAKI 60Q45 sprocket has 45 teeth, a 10.752 in pitch diameter, and an 11.175 in outside diameter. It is made of steel, fits 60 chain, and requires a Q1 bushing series. The manufacturer part number is 60Q45.

Where to buy the TSUBAKI 60Q45 sprocket worldwide?

You can source the TSUBAKI 60Q45 sprocket through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring your order arrives reliably.

How to select the correct bushing for the TSUBAKI 60Q45 sprocket?

The TSUBAKI 60Q45 sprocket requires a Q1 bushing series. To select the correct bushing, match the bore size to your shaft diameter and ensure the bushing keyway aligns with your application. Always consult the TSUBAKI catalog for proper fit and torque specifications.

Used in

Common applications for TSUBAKI
Material handling conveyors — TSUBAKI C2080H connecting links for heavy-duty chain systems
Packaging machinery — TSUBAKI size 60 roller chains with 60NEPCL connecting links for coated chain applications
Automotive assembly lines — TSUBAKI 80NPSK1CL attachment links for positioning fixtures on single-strand chains
Food processing equipment — TSUBAKI nickel-plated chains and sprockets (e.g., 50BTL48) for washdown environments
General power transmission — TSUBAKI PL1G keyless bushings for shaft mounting without keyways in drive systems
Conveyor drive systems — TSUBAKI 40BTL24 sprockets for size 40 chain in light-to-medium load applications

TSUBAKI Products

3G Electric supplies TSUBAKI size 60 bushed-bore roller chain sprockets. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
