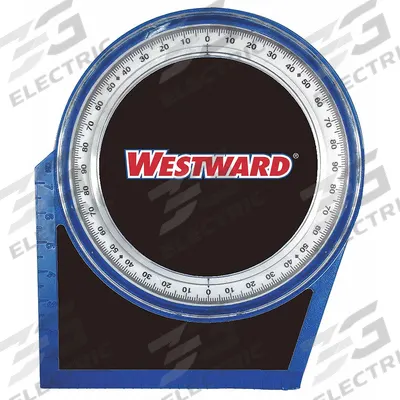

WESTWARD Angle Finder: 3 Quadrants, 3 1/2 in Base Lg, Magnetic, Degrees, 3 in Overall Ht - Angle Locators
WESTWARDAngle Locators

WESTWARD Angle Finder: 3 Quadrants, 3 1/2 in Base Lg, Magnetic, Degrees, 3 in Overall Ht

The WESTWARD Angle Finder: 3 Quadrants is an angle locator with a 3 1/2 in base length and 3 in overall height, measuring 0° to 90° in 0.5° increments. It is made of plastic (polystyrene) and is magnetic. This…

SKU 3G-OTH-305600

Brand
WESTWARD
Item
Angle Finder: 3 Quadrants, 3 1/2 in Base Lg, Magnetic, Degrees, 3 in Overall Ht
Category
Angle Locators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

WESTWARD
Manufacturer Part Number
30PA69
Type
Magnetic, Degrees, 0°to 90°
Base Lg
3 1/2 in
Overall Ht
3 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

WESTWARD Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WESTWARD Angle Finder: 3 Quadrants is an angle locator with a 3 1/2 in base length and 3 in overall height, measuring 0° to 90° in 0.5° increments. It is made of plastic (polystyrene) and is magnetic. This product is designed for angle measurement tasks in industrial settings.

Frequently Asked Questions

What is the WESTWARD Angle Finder used for?

The WESTWARD Angle Finder is used for measuring angles from 0° to 90° in industrial settings. Its magnetic base attaches to ferrous surfaces, making it ideal for layout, fabrication, and inspection tasks in machining, metalworking, and maintenance applications.

What are the specifications of the WESTWARD Angle Finder 30PA69?

The WESTWARD Angle Finder 30PA69 has a 3 1/2 in base length and 3 in overall height. It measures 0° to 90° in 0.5° increments, is made of polystyrene plastic, and features a magnetic base. The manufacturer part number is 30PA69.

Where to buy the WESTWARD Angle Finder worldwide?

3G Electric supplies the WESTWARD Angle Finder 30PA69 to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us to order this angle locator for your facility.

How to maintain the WESTWARD Angle Finder?

To maintain the WESTWARD Angle Finder, keep the plastic body and magnetic base clean from debris and metal filings. Store it in a dry area to prevent damage to the polystyrene. Avoid dropping the tool, as impacts can affect measurement accuracy.
