Approved Vendor 3G-OTH-534116 — Technical Specifications

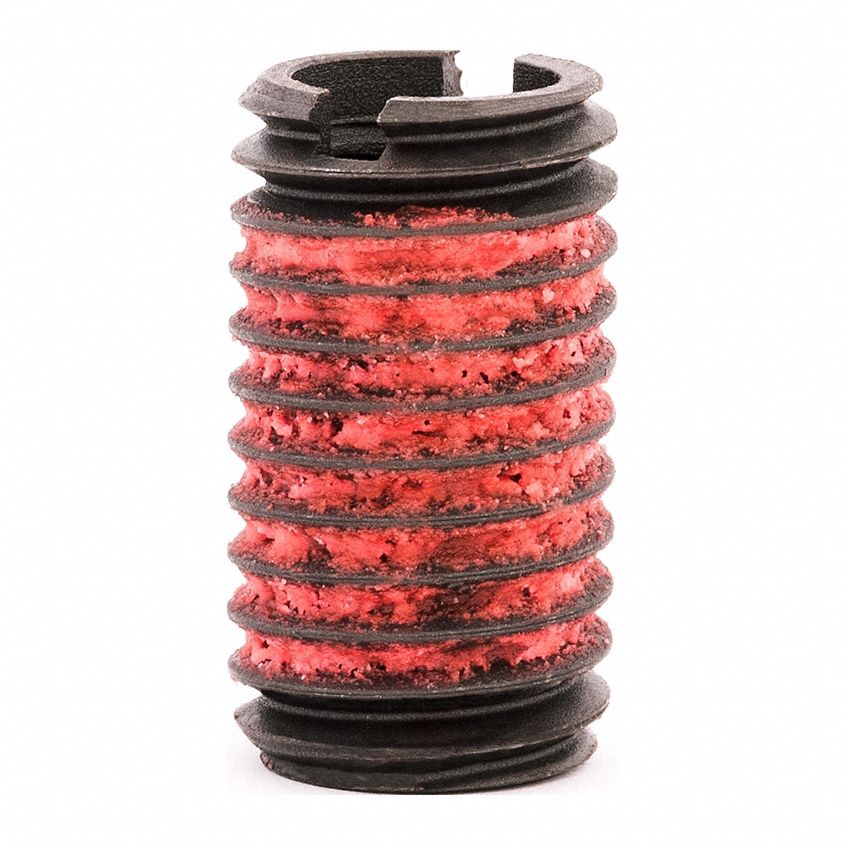

The APPROVED VENDOR Self Locking Thread Insert is a heavy wall, standard wall type insert with a 3/8"-16 internal coarse thread and 1-inch overall length. Supplied as a 5-pack (MPN 329-601-PK5), it requires a 31/64 drill bit and a 9/16"-12 compatible tap, with external thread fit 2A and internal thread fit 2B in inch measurement.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 5 PK |
| Wall Type | Standard Wall |
| Overall Lg | 1 in |
| Int Thrd Sz | 3/8"-16 |
| Thread Type | Coarse |
| Drill Bit Size | 31/64 |
| Compatible Tap Size | 9/16"-12 |
| External Thread Fit | 2A |
| Internal Thread Fit | 2B |
| System Of Measurement | Inch |
| Manufacturer Part Number | 329-601-PK5 |
