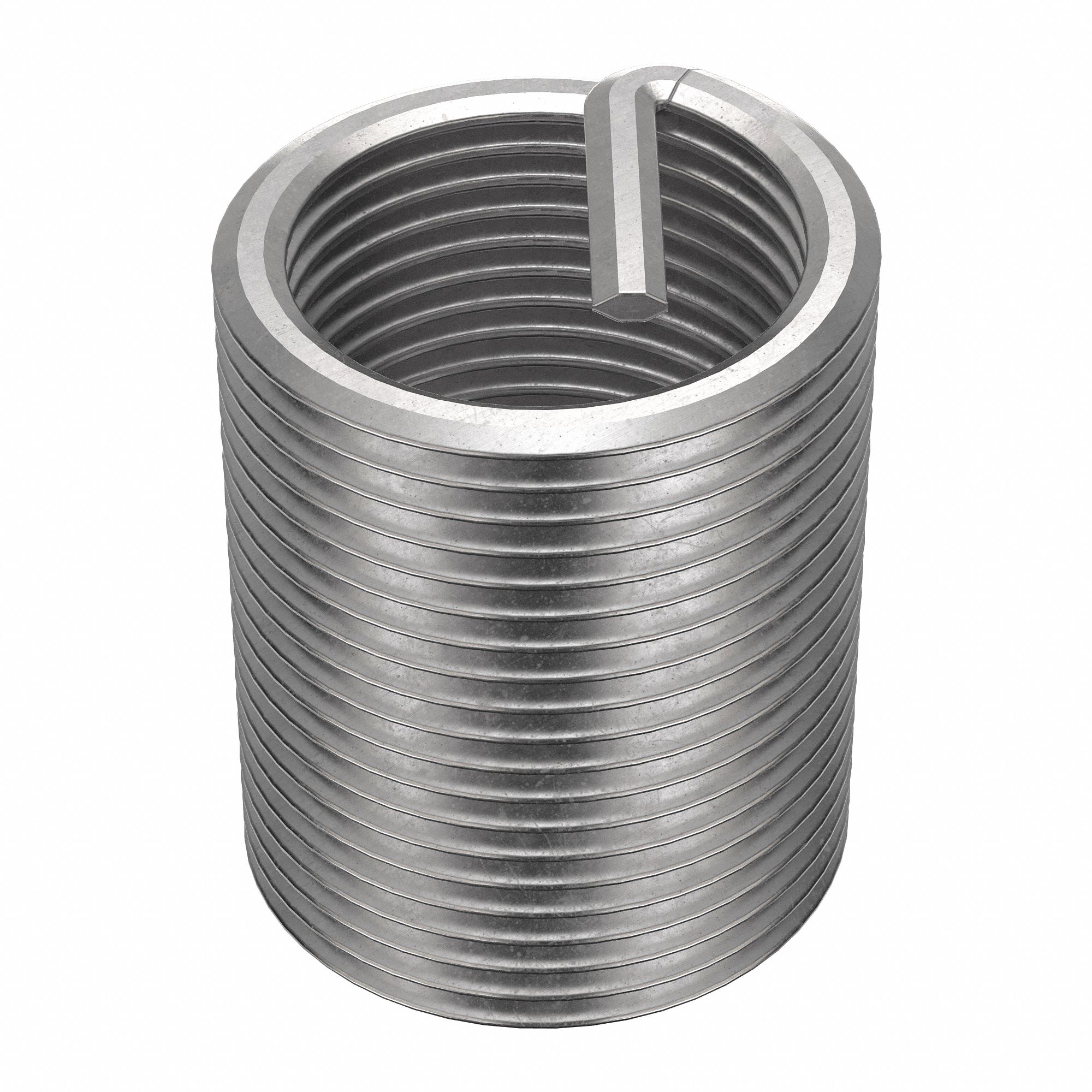

Heli-coil 3G-OTH-529070 — Technical Specifications
The HELI-COIL Helical Insert is a tanged tang style screw-locking insert with a 1"-14 fine thread, 1 1/2 in overall length, and a tensile strength of 200,000 to 250,000 psi. Made from 18-8 stainless steel (plain finish), it is compatible with metal and uses a right-hand thread. This inch-system insert requires an STI tap size of 1"-14.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Screw-Locking |
| Brand | HELI-COIL |
| Overall Lg | 1 1/2 in |
| Finish Type | Plain |
| Thread Size | 1"-14 |
| Thread Type | Fine |
| STI Tap Size | 1"-14 |
| Tensile Strength | 200,000 to 250,000 psi |
| Thread Direction | Right Hand |
| Compatible Material | Metal |
| Material Grade/Class | 18-8 |
| System Of Measurement | Inch |
| Manufacturer Part Number | 3591-16CN1500 |
