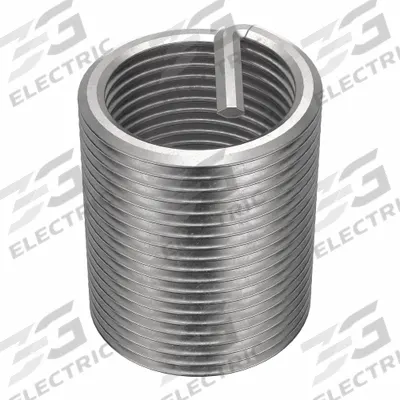

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 1"-14 Thread Size - Screw-Locking Tanged Helical Inserts
HELI-COILScrew-Locking Tanged Helical Inserts

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 1"-14 Thread Size

The HELI-COIL Helical Insert is a tanged tang style screw-locking insert with a 1"-14 fine thread, 1 1/2 in overall length, and a tensile strength of 200,000 to 250,000 psi. Made from 18-8 stainless steel (plain…

SKU 3G-OTH-529070

Brand
HELI-COIL
Item
Helical Insert: Tanged Tang Style, Screw-Locking, 1"-14 Thread Size
Category
Screw-Locking Tanged Helical Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HELI-COIL
Manufacturer Part Number
3591-16CN1500
Type
Screw-Locking
Overall Lg
1 1/2 in
Tensile Strength
200,000 to 250,000 psi
Finish Type
Plain
Thread Size
1"-14
Thread Type
Fine
STI Tap Size
1"-14
Thread Direction
Right Hand
Compatible Material
Metal
Material Grade/Class
18-8
System of Measurement
Inch
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HELI-COIL Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HELI-COIL Helical Insert is a tanged tang style screw-locking insert with a 1"-14 fine thread, 1 1/2 in overall length, and a tensile strength of 200,000 to 250,000 psi. Made from 18-8 stainless steel (plain finish), it is compatible with metal and uses a right-hand thread. This inch-system insert requires an STI tap size of 1"-14.
