Schneider 3G-OTH-43169 — Technical Specifications

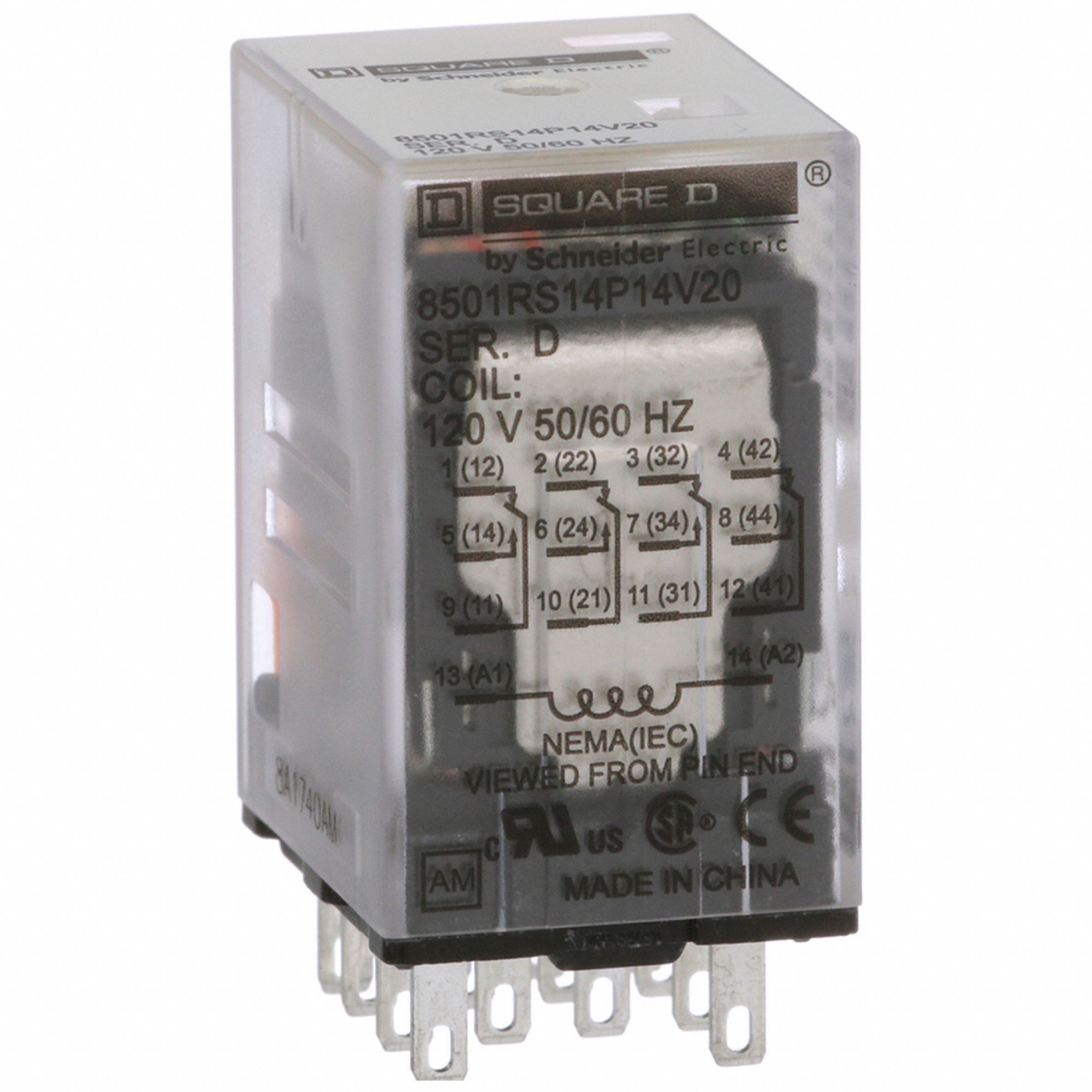

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501R Miniature Control Series. It features a square base with flat pins, a quick-connect electrical connection, and a 4PDT contact configuration. This relay is rated for 6 A at 120V AC and uses a G socket (MPN 8501RS14P14V20).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120V |
| Type | 4PDT, G Socket |
| Brand | SCHNEIDER |
| Series | Square D 8501R Miniature Control Series |
| Base Type | Square |
| Pin Shape | Flat |
| Current Rating | 6 A |
| Mounting Style | Socket |
| Electrical Connection | Quick-Connect |
| Manufacturer Part Number | 8501RS14P14V20 |
