CombutechCombustion

Combutech Box COMBU1s

SKU 3G-CBM-01170

Also listed as: COB 02002 · COB-02002

Brand

Combutech

Item

Box COMBU1s

Technical Specifications

Combutech

fuse

5x20mm QUICKBLOW 3.15 A

voltage

230 V ±15%

frequency

50/60 Hz

purge time

1÷250 s

pre ignition

500 ms

max output load

3 A @ 230 V cosϕ=0.4

protection class

IP40

power consumption

3 VA MAX

power dissipation

2 W MAX

relative humidity

45÷85 %

storage temperature

-20÷80 °C

detector line length

<1 m

startup safety delay

2÷25 s

operating safety delay

1÷12 s

View Full Spec Sheet

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Combutech Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

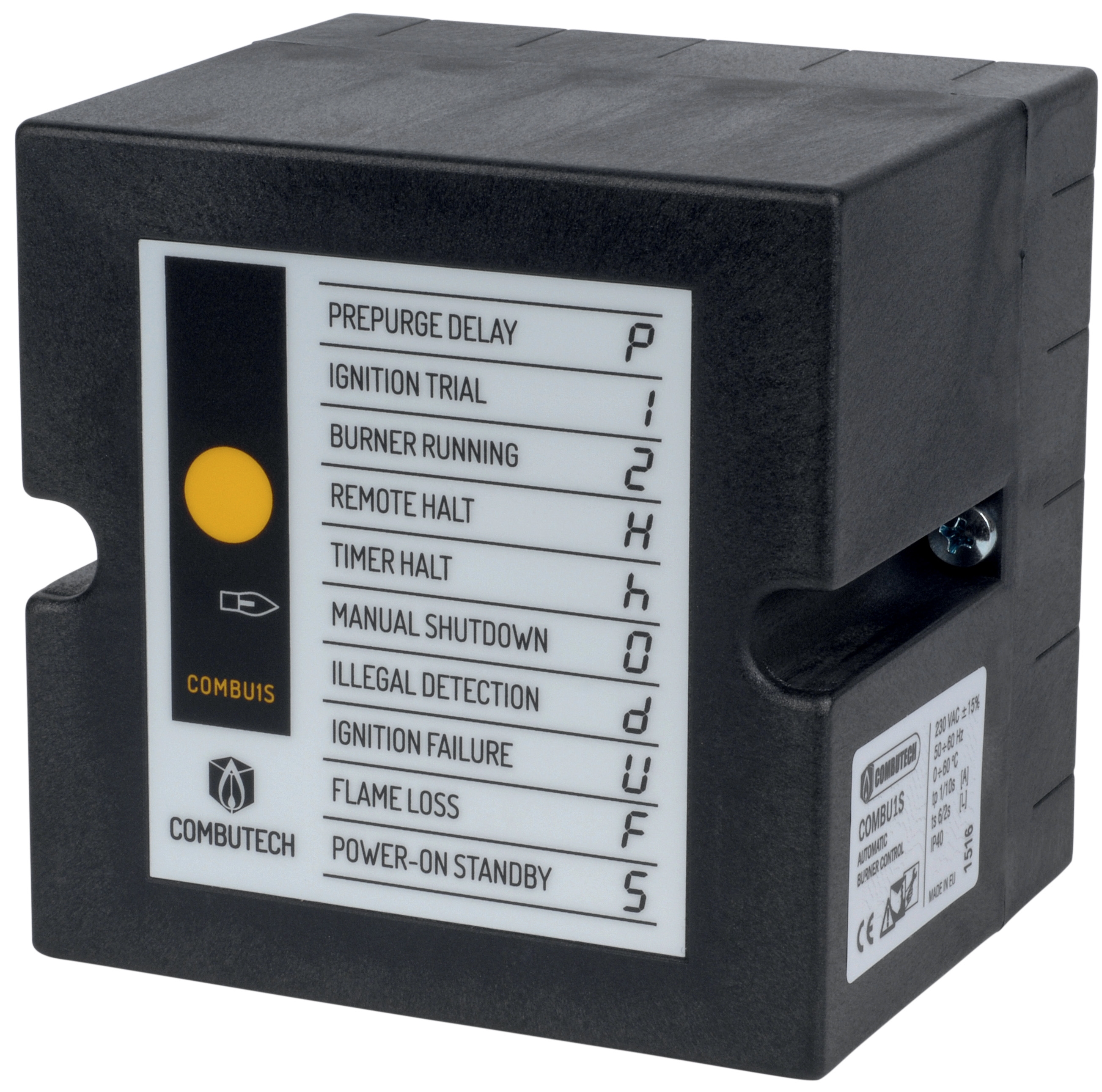

Combutech Box COMBU1s is a combustion control unit for industrial burner systems, operating at 230 V ±15% with 50/60 Hz frequency. Features adjustable purge time of 1÷250 s, startup safety delay of 2÷25 s, and maximum output load of 3 A @ 230 V. IP40-rated for boiler room and industrial heating applications.

Used in

Common applications for Combutech

Oil burner safety interlocks — Combutech COMBUP series pressure switches monitor furnace draft or fuel pressure with ±15% tolerance and IP54 sealing

Flame failure detection — UV1 or UV1p detection cells with CF1 relay module monitor combustion in industrial boilers and process heaters, 10,000+ hour lifespan

Gas burner startup sequencing — COMBU1s control unit manages purge timing (1–250 s), ignition delay, and load switching for multi-burner systems at 230 V ±15%

Pressure vessel monitoring — Low-range COMBUP10 switches (2–10 mbar) provide reliable differential-pressure or air-intake supervision in heating and HVAC plant

Industrial process automation — Flame relay CF1 handles up to 10 simultaneous UV sensors for redundant combustion confirmation in pharmaceutical, food, or chemical processing

Retrofit and maintenance replacement — Standardized 1/4" female thread, DIN connectors, and IP54/IP65 ratings allow drop-in substitution in legacy burner control panels without rewiring
