Is the Combutech UV detection cell UV1 available from 3G Electric?

Yes — 3G Electric supplies genuine Combutech products with in-stock availability on common SKUs and worldwide shipping.

How do I get a quote for the Combutech UV detection cell UV1?

Click "Request a Quote" on this page or add the product to your RFQ cart. Our engineers will respond within 24 hours with pricing, lead times, and technical recommendations.

Does 3G Electric provide technical support for combustion?

Yes, our team of experienced engineers provides full technical support including product selection, installation guidance, commissioning, and after-sales service for all combustion we distribute.

CombutechCombustion

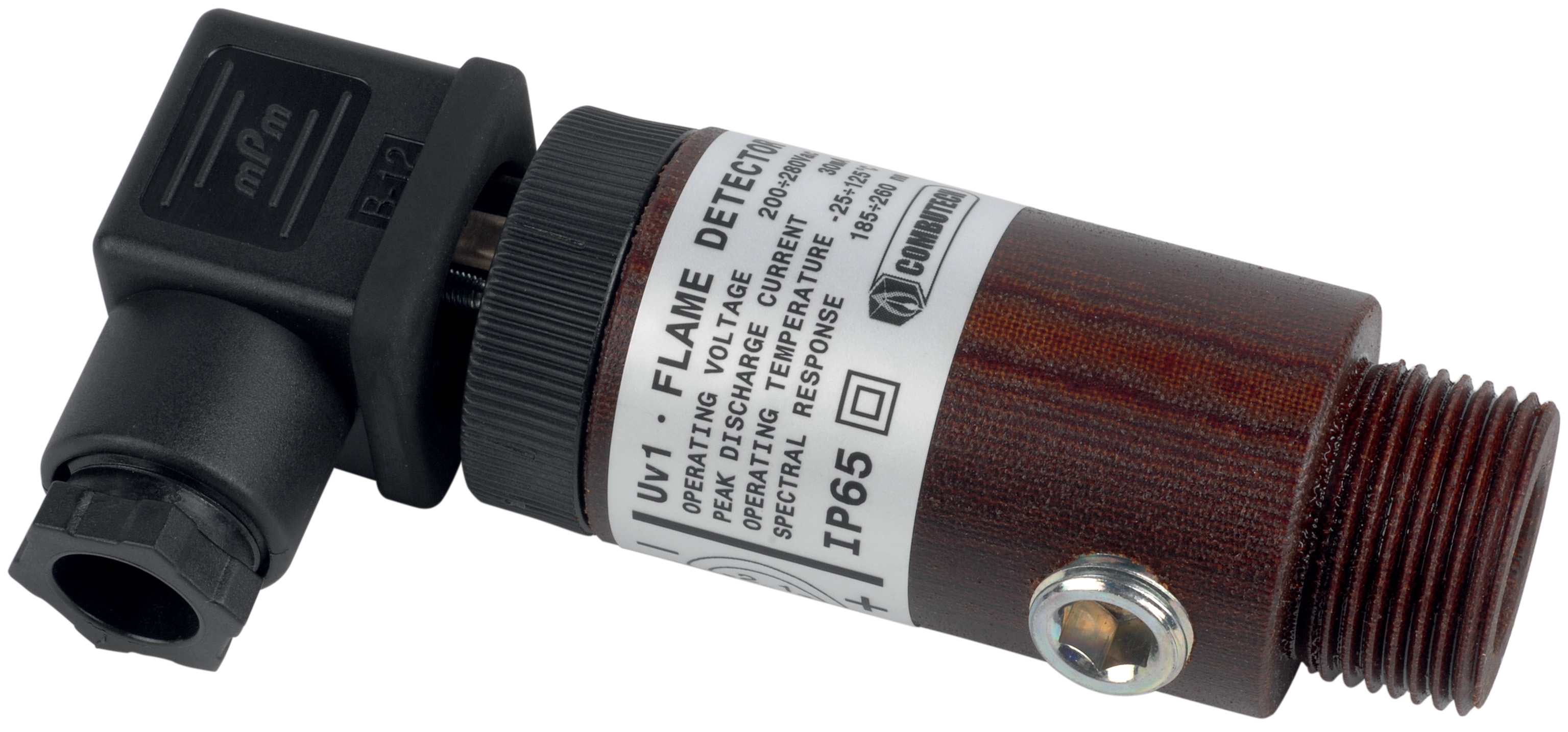

Combutech UV detection cell UV1

Combutech UV1 is a UV detection cell for combustion monitoring applications, featuring a 10000-hour lifespan at 50°C and 1 mA discharge current. With IP65 protection and DIN43650 3-pole connection, it integrates into…

SKU 3G-CBM-01172

Also listed as: COB 02080 · COB-02080

Brand

Combutech

Item

UV detection cell UV1

Technical Specifications

Combutech

lifespan

>10000 hours @ 50°C/1mA

connection

DIN43650 3 pole

max vibration

0.5 G

recovery time

20 S @ 10% DUTY CYCLE

gas connection

¾" GAS

protection class

IP65

discharge current

1 mA

operating voltage

200÷280 VAC

spectral response

185÷260 nm

max discharge current

30 mA

operating temperature

−25÷125 °C

View Full Spec Sheet

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Combutech Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Used in

Common applications for Combutech

Oil burner safety interlocks — Combutech COMBUP series pressure switches monitor furnace draft or fuel pressure with ±15% tolerance and IP54 sealing

Flame failure detection — UV1 or UV1p detection cells with CF1 relay module monitor combustion in industrial boilers and process heaters, 10,000+ hour lifespan

Gas burner startup sequencing — COMBU1s control unit manages purge timing (1–250 s), ignition delay, and load switching for multi-burner systems at 230 V ±15%

Pressure vessel monitoring — Low-range COMBUP10 switches (2–10 mbar) provide reliable differential-pressure or air-intake supervision in heating and HVAC plant

Industrial process automation — Flame relay CF1 handles up to 10 simultaneous UV sensors for redundant combustion confirmation in pharmaceutical, food, or chemical processing

Retrofit and maintenance replacement — Standardized 1/4" female thread, DIN connectors, and IP54/IP65 ratings allow drop-in substitution in legacy burner control panels without rewiring
