ELVSolenoid Valves

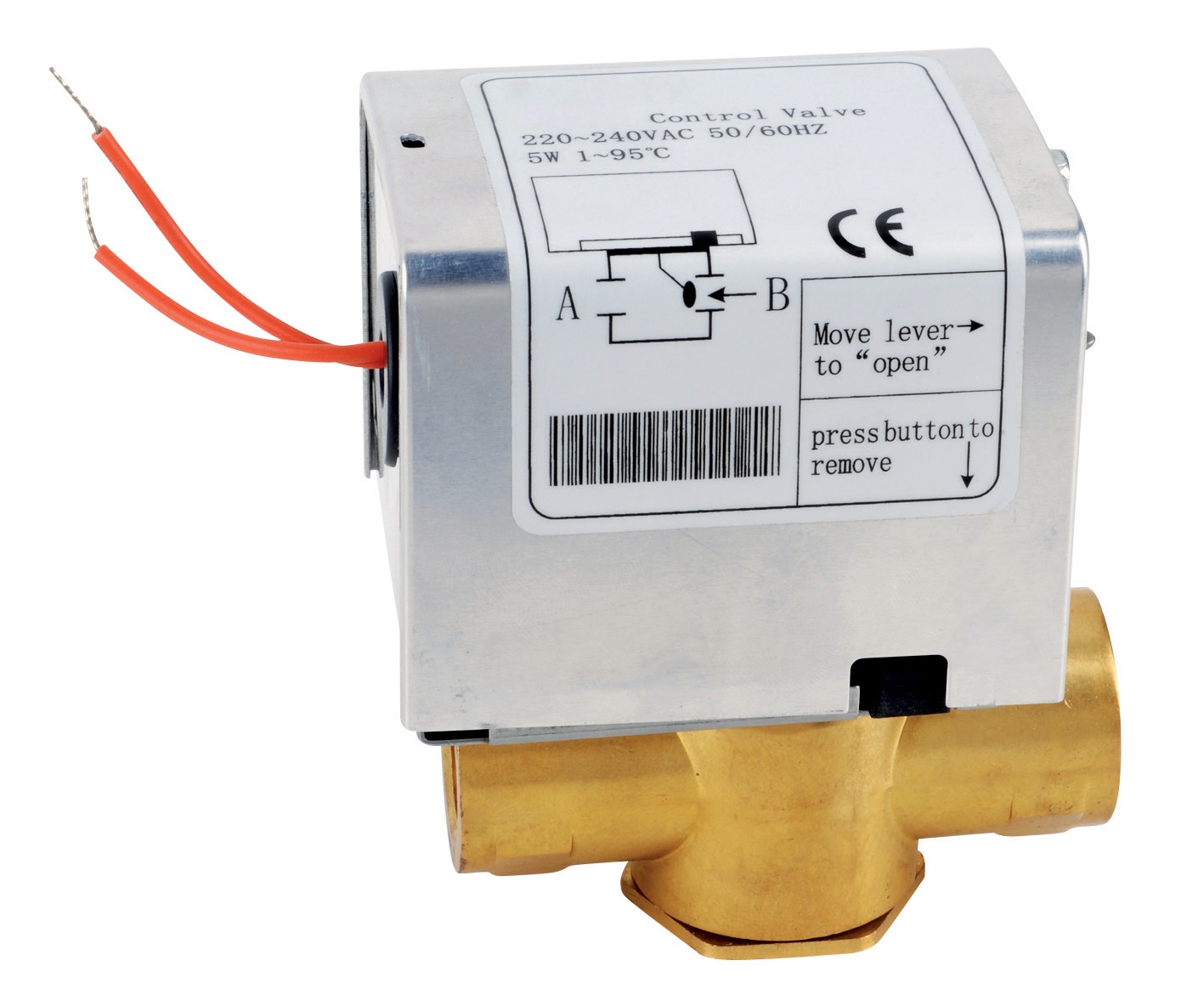

ELV 3-way zone valve 3/4"

ELV 3/4" 3-way solenoid zone valve for chilled and hot water systems with up to 50% glycol. Features AC220V±10% operation, 16 bar maximum pressure, and <7s closing time. Ideal for HVAC zone control applications.

SKU 3G-CBM-03296

Also listed as: ELV 60022 · ELV-60022

Brand

ELV

Item

3-way zone valve 3/4"

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

ELV

3.4 (4.0)

fluid

Chilled/hot water, up to 50% glycol

power

AC220V±10%, 50/60Hz

connection

3/4"

consumption

6.5W

closing time

<7s

control mode

On-Off with spring return

max pressure

16 bar

opening time

<18s

closing pressure

1.8 bar

fluid temperature

0°C-94°C

ambient temperature

0°C-50°C

Datasheet Content

Données Techniques


                    Modèle ELV60002 & 10 ELV60020 & 30 ELV60004 & 12 3G-CBM-03296 & 32 ELV60006 & 14 ELV60024 & 34

               Alimentation                                           AC220V±10%, 50/60Hz
           Consommation                                                           6.5W
         Mode de contrôle                                         On-Off(Ouvert/Fermé) Ressort de rappel
                    Temps                                                Ouverture<18s Fermeture<7s
             Type d'action     N.C. 2 Voies    Déviation 3-Way N.C. 2 Voies          Déviation 3-Way N.C. 2 Voies   Déviation 3-Way
            Pression max                                                         16 Bar
                    Fluide                                    Eau glacée et/ou chaude, jusqu'à 50% de Glycol
                  Câblage                                             2 Fils(Rouge, Bleu) or 5 Fils

    Température ambiante                                             0℃-50℃ sans condensation
     Température du fluide                                                       0℃-94℃
                  Matériel                                   Corps : Laiton - Axe : SS(304) - Joint : EPDM
                  DN Size           DN15            DN15                DN20              DN20           DN25           DN25
                  Filetage                                                     BSPP Femelle
         Diamètre raccord           1/2”              1/2”               3/4”              3/4”              1”           1”
           Valeur Kv (Cv)      2.2（2.5）         2.6（3.0）             3.0（3.5）          3.4（4.0）       6.5（7.5）        6.9（8.0）
Pression de fermeture(Bar)            2                2                 1.8               1.8               1.5          1.5




Dimensions




         Modèle               A(mm)           B(mm)              C(mm)

     DN15 2 Voies              70              23                  86
     DN15 3 Voies              70              33                  86
     DN20 2 Voies              79              23                  90

     DN20 3 Voies              79              34                  90

     DN25 2 Voies              88              23                  95
     DN25 3 Voies              88              42                  95
Câblage




              2 Fils (sans contact auxiliaire)                                         5 Fils (avec contact auxiliaire)


Installations
  1. Lisez attentivement ces instructions. Le non-respect de ces instructions pourrait endommager le produit ou
      provoquer une situation dangereuse.
  2. Vérifier les côtes indiquées dans les instructions et sur le produit pour vous assurer que le produit est
      adapté à votre application.
  3. L’installateur doit être un technicien qualifié et expérimenté.
  4. La vanne doit être installée dans un endroit facile à installer et à entretenir.
  5. L’installation doit être horizontale, cela signifie que le moteur doit être vers le haut de façon à éviter l’humidité.
  6. Lors de l'installation de la vanne 2 voies, le côté B doit être l'entrée et le côté A doit être la sortie (A, B inscrit
      sur le bas du corps de vanne).
  7. Lors de l'installation de la vanne 3 voies, l'entrée se trouve en bas de la vanne (aucune inscription sur le
     corps de vanne).
  8. Pour la vanne 3 voies, le côté B est le NC & le côté A est le NO. Installez le tuyau de sortie, le côté B doit
     être connecté au tuyau pricipal et le côté A doit être connecté au tuyau de dérivation, voir FIG.3.




                                                 2 Voies Normalement fermée
                                        3 Voies
Installations
 Actionneur détachable

                   3.Retirer
                   l'actionneur


                                                  1.Mettre en position ouverte


                 2. Pousser le bouton

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the ELV 3-way zone valve 3/4" used for?

The ELV 3/4" 3-way solenoid zone valve is designed for HVAC zone control in chilled and hot water systems, including those with up to 50% glycol. It is commonly used in commercial buildings and industrial facilities in Singapore to regulate water flow to individual zones.

What are the specifications of the ELV 3-way zone valve 3/4"?

The ELV 3/4" 3-way zone valve operates on AC220V±10%, 50/60Hz, with 6.5W consumption. It has a Kv of 3.4 (Cv 4.0), maximum pressure of 16 bar, closing pressure of 1.8 bar, and fluid temperature range of 0°C-94°C. Opening time is <18s, closing time <7s, with spring return.

Where to buy the ELV 3-way zone valve 3/4" in Singapore?

3G Electric supplies the ELV 3/4" 3-way zone valve to Singapore. We handle logistics, customs clearance, and delivery to your site. Contact our team for pricing and lead time on this ELV solenoid valve for HVAC applications.

How to install the ELV 3-way zone valve 3/4"?

Install the ELV 3-way zone valve horizontally with the actuator facing upward to avoid moisture. For 3-way models, the inlet is at the bottom; connect side B (NC) to the main pipe and side A (NO) to the bypass. Ensure installation by a qualified technician and follow the wiring diagram for 2 or 5 wires.
