PactrolBurner Controls

Pactrol Cell 8209

SKU 3G-CBM-05952

Also listed as: REL 30210 · REL-30210

Brand

Pactrol

Item

Cell 8209

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Pactrol

cell type

photoresistive

max operating temperature

100°C

Datasheet Content

VISE FL AMME AVEC CELLULE PHOTO RESISTANTE
          8204 - 8205 - 8206 - 8208 .:.. 8209 - 8210 - 8211
      Ces porte-cellules utilisent des cellules photo-résistantes. La température .de ces cellules en marche normale doit être au maxi­
      mum de 100.

                                                       8204                                                                8205

...

                                                                                                                    85

                                Ne fonctionnent qu'avec des équipements comportant une amplification

                                                       8208                                                                8209

                                                                                    '
                                                                                    :
                                                                                        ..
                                                                                        \

      Fonctionnant avec les équipements série miniature sans amplification et avec les équipements série normale munis d'un relais
      sensible (indice 2)_

                               8206                                              8210                                           8211

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Pactrol Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

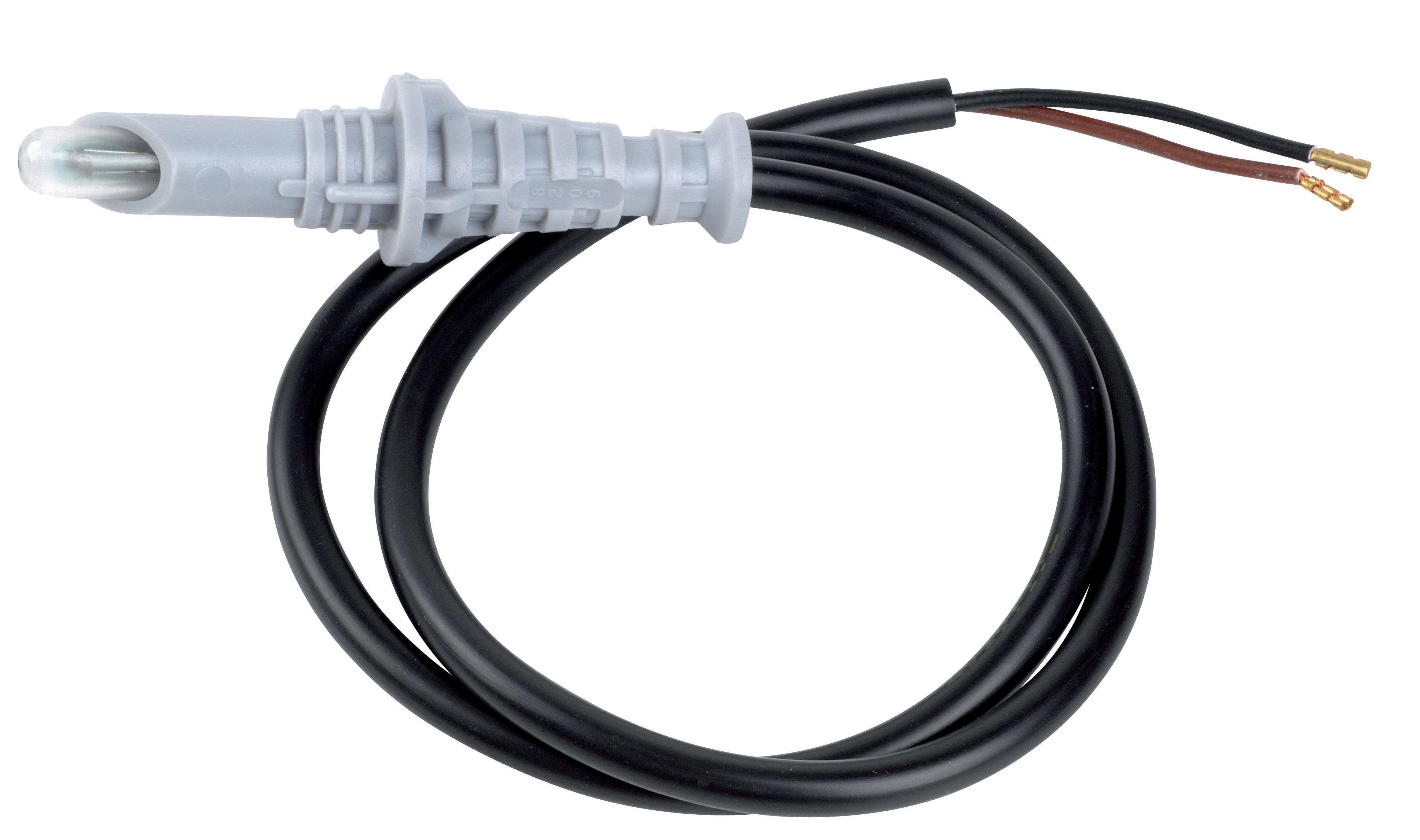

Pactrol Cell 8209

Frequently Asked Questions

What is the Pactrol Cell 8209 used for?

The Pactrol Cell 8209 is a photoresistive flame detector used in burner control systems. It senses the presence of a flame by detecting light from the burner, and it is designed for use with miniature series equipment without amplification or with normal series equipment fitted with a sensitive relay.

What are the specifications of the Pactrol Cell 8209?

The Pactrol Cell 8209 is a photoresistive cell with a maximum operating temperature of 100°C. It is part of the 8200 series and is designed for flame detection in burner control applications. The cell requires compatible equipment with amplification or a sensitive relay for proper operation.

Where to buy the Pactrol Cell 8209 in Singapore?

You can source the Pactrol Cell 8209 through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this burner control component.

How to install the Pactrol Cell 8209?

Install the Pactrol Cell 8209 by mounting it in the burner housing so it has a clear view of the flame. Ensure the ambient temperature does not exceed 100°C. Connect the cell to the appropriate burner control equipment, following the manufacturer's wiring diagram for safe operation.
