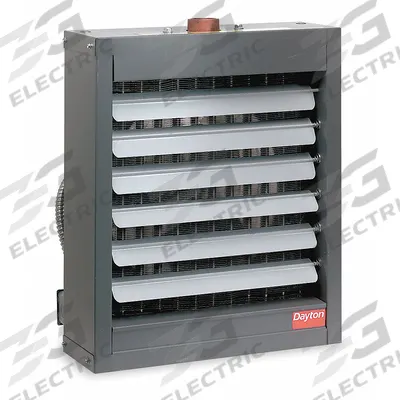

Dayton Hydronic Wall and Ceiling Unit Heater: Steam/Water - Suspended Horizontal Hydronic Wall & Ceiling Unit Heaters
DaytonSuspended Horizontal Hydronic Wall & Ceiling Unit Heaters

Dayton Hydronic Wall and Ceiling Unit Heater: Steam/Water

The DAYTON Hydronic Wall and Ceiling Unit Heater (SKU 5PV15) is a suspended horizontal unit heater designed for steam or water heating. It delivers 1,800 cfm of air flow and has a 78,400 BtuH output at 200°F water…

SKU 3G-OTH-65775

Brand
Dayton
Item
Hydronic Wall and Ceiling Unit Heater: Steam/Water
Category
Suspended Horizontal Hydronic Wall & Ceiling Unit Heaters
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
5PV15
Type
78,400 BtuH Output @ 200 F Water
Air Flow
1,800 cfm
Fan Guard Type
Standard Guard
Heating Method
Steam
Overall Dimensions - H x W x D
24 in x 19-5/8 in x 13-13/16 in
Connection Size, Connection Type
1-1/2 in, Threaded Female NPT
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Hydronic Wall and Ceiling Unit Heater (SKU 5PV15) is a suspended horizontal unit heater designed for steam or water heating. It delivers 1,800 cfm of air flow and has a 78,400 BtuH output at 200°F water. The unit features a 1-1/2 in threaded female NPT connection and overall dimensions of 24 in x 19-5/8 in x 13-13/16 in, with a standard fan guard.

Frequently Asked Questions

What is the DAYTON Hydronic Wall and Ceiling Unit Heater used for?

The DAYTON Hydronic Wall and Ceiling Unit Heater is used for heating commercial or industrial spaces using steam or hot water. It is typically suspended from walls or ceilings to provide targeted warmth in warehouses, factories, or large rooms.

What are the specifications of the DAYTON 5PV15 unit heater?

The DAYTON 5PV15 delivers 78,400 BtuH output at 200°F water with 1,800 cfm air flow. It uses a 1-1/2 in threaded female NPT connection, measures 24 in x 19-5/8 in x 13-13/16 in, and includes a standard fan guard. The heating method is steam or water.

Where to buy the DAYTON 5PV15 unit heater worldwide?

You can source the DAYTON 5PV15 unit heater through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide locations. Contact us for availability and lead time.

How to install a DAYTON hydronic unit heater?

Install the DAYTON hydronic unit heater by suspending it horizontally from a wall or ceiling using appropriate brackets. Connect the 1-1/2 in threaded female NPT piping for steam or water supply. Ensure proper clearance for airflow and follow local codes for safe operation.
