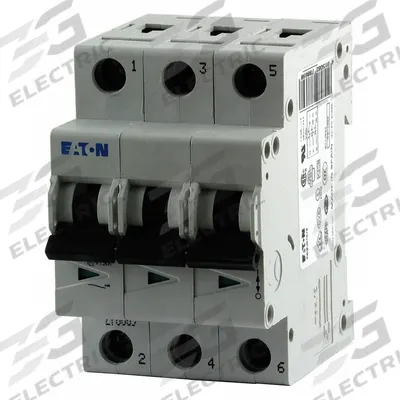

EATON Supplementary Protector: 15 A Amps, 96V DC, 15kA at 240/415V AC, Lug, FAZ - D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
EATOND-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors

EATON Supplementary Protector: 15 A Amps, 96V DC, 15kA at 240/415V AC, Lug, FAZ

The EATON FAZ-D15/3 is a D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 15 A Amps. It features a Max. AIR Rating of 15kA at 240/415V AC, AC Voltage Rating of 277/480V AC, and DC Voltage Rating…

SKU 3G-OTH-21074

Brand
EATON
Item
Supplementary Protector: 15 A Amps, 96V DC, 15kA at 240/415V AC, Lug, FAZ
Category
D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
FAZ-D15/3
Series
FAZ
Type
15kA at 240/415V AC, Lug, FAZ
AC
277/480V
DC
96V
Max. AIR Rating
15kA at 240/415V AC
AC Voltage Rating
277/480V AC
DC Voltage Rating
96V DC
Terminal Connection
Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON FAZ-D15/3 is a D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 15 A Amps. It features a Max. AIR Rating of 15kA at 240/415V AC, AC Voltage Rating of 277/480V AC, and DC Voltage Rating of 96V DC, with Lug terminal connections.

Frequently Asked Questions

What is the EATON FAZ-D15/3 supplementary protector used for?

The EATON FAZ-D15/3 is a D-Curve, 3-pole UL1077 supplementary protector rated at 15 A. It protects branch circuits and equipment against overloads and short circuits in industrial control panels, HVAC systems, and lighting applications where high inrush currents occur.

What are the specifications of the EATON FAZ-D15/3?

The EATON FAZ-D15/3 has a 15 A rating, AC voltage rating of 277/480V AC, DC voltage rating of 96V DC, and a maximum AIR rating of 15kA at 240/415V AC. It features lug terminal connections and is part of the FAZ series from EATON.

Where to buy the EATON FAZ-D15/3 worldwide?

You can source the EATON FAZ-D15/3 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead times.

How to select the right EATON FAZ-D15/3 for an application?

Select the EATON FAZ-D15/3 by verifying your system's voltage (up to 277/480V AC or 96V DC), current rating (15 A), and short-circuit capacity (15kA at 240/415V AC). Ensure the D-curve matches high inrush loads like motors or transformers. Confirm lug terminal compatibility with your wiring.
