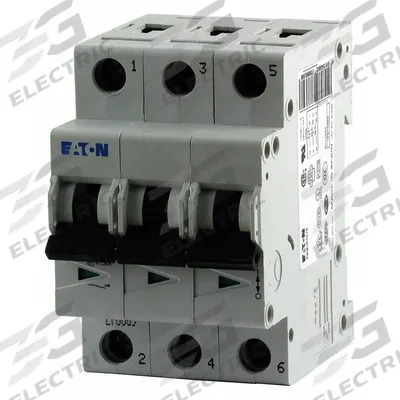

EATON Supplementary Protector: 8 A Amps, 96V DC, 15kA at 240/415V AC, Lug, FAZ - D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
EATOND-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors

EATON Supplementary Protector: 8 A Amps, 96V DC, 15kA at 240/415V AC, Lug, FAZ

The EATON FAZ-D8/3 is a D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 8 A Amps. It features a Max. AIR Rating of 15kA at 240/415V AC, AC Voltage Rating of 277/480V AC, and DC Voltage Rating…

SKU 3G-OTH-20945

Brand
EATON
Item
Supplementary Protector: 8 A Amps, 96V DC, 15kA at 240/415V AC, Lug, FAZ
Category
D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
FAZ-D8/3
Series
FAZ
Type
15kA at 240/415V AC, Lug, FAZ
AC
277/480V
DC
96V
Max. AIR Rating
15kA at 240/415V AC
AC Voltage Rating
277/480V AC
DC Voltage Rating
96V DC
Terminal Connection
Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON FAZ-D8/3 is a D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 8 A Amps. It features a Max. AIR Rating of 15kA at 240/415V AC, AC Voltage Rating of 277/480V AC, and DC Voltage Rating of 96V DC, with Lug terminal connections.

Frequently Asked Questions

What is the EATON FAZ-D8/3 supplementary protector used for?

The EATON FAZ-D8/3 is a D-Curve, 3-Pole UL1077 DIN Rail-Mount supplementary protector rated at 8 A Amps. It protects branch circuits and equipment from overcurrents and short circuits in industrial control panels, HVAC systems, and machinery across 14 industrial departments.

What are the specifications of the EATON FAZ-D8/3?

The EATON FAZ-D8/3 has an AC voltage rating of 277/480V AC, a DC voltage rating of 96V DC, and a max. AIR rating of 15kA at 240/415V AC. It features Lug terminal connections and is part of the FAZ series. 3G Electric supplies this genuine EATON part worldwide.

Where to buy the EATON FAZ-D8/3 worldwide?

3G Electric supplies the genuine EATON FAZ-D8/3 supplementary protector to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for a quote and lead time on this D-Curve, 3-Pole UL1077 DIN Rail-Mount protector.

How to select the right EATON FAZ supplementary protector?

Select the EATON FAZ supplementary protector based on your system's voltage (AC or DC), current rating (e.g., 8 A Amps), and interrupting capacity (e.g., 15kA at 240/415V AC). Ensure the curve type (D-Curve) matches your load's inrush characteristics. 3G Electric can help you choose.
