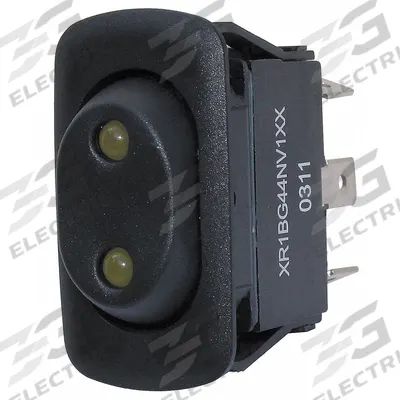

EATON Lighted Rocker Switch: 2 Positions, SPDT, On/On - General Purpose Rocker Switches
EATONGeneral Purpose Rocker Switches

EATON Lighted Rocker Switch: 2 Positions, SPDT, On/On

The EATON XR1CG44NV1XX is a general purpose lighted rocker switch from the Series X line, featuring a 2-position, SPDT, On/On configuration with amber illumination. It is rated for 10 A at 277 V AC and 3/4 hp at 277…

SKU 3G-OTH-35219

Brand
EATON
Item
Lighted Rocker Switch: 2 Positions, SPDT, On/On
Category
General Purpose Rocker Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
XR1CG44NV1XX
Series
X
Horsepower
3/4 hp @ 277 V
Includes Lens
Lens Included
Displayed Brand
EATON
AC Contact Rating
10 A @ 277 V
Operator Illumination
Illuminated
Terminal Connection Type
0.25 in Quick Connect Tab
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON XR1CG44NV1XX is a general purpose lighted rocker switch from the Series X line, featuring a 2-position, SPDT, On/On configuration with amber illumination. It is rated for 10 A at 277 V AC and 3/4 hp at 277 V, with a 0.25 in quick connect tab terminal connection and an included lens.

Frequently Asked Questions

What is the EATON XR1CG44NV1XX lighted rocker switch used for?

The EATON XR1CG44NV1XX is a general purpose lighted rocker switch used for industrial control panels, HVAC equipment, and machinery where a 2-position, SPDT On/On function with amber illumination is required. It is rated for 10 A at 277 V AC and 3/4 hp at 277 V.

What are the specifications of the EATON XR1CG44NV1XX rocker switch?

The EATON XR1CG44NV1XX is a Series X lighted rocker switch with SPDT, 2-position On/On configuration. It has an AC contact rating of 10 A at 277 V, horsepower rating of 3/4 hp at 277 V, amber illumination, and a 0.25 in quick connect tab terminal. The lens is included.

Where to buy the EATON XR1CG44NV1XX rocker switch worldwide?

You can source the EATON XR1CG44NV1XX through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this EATON Series X lighted rocker switch.

How to install the EATON XR1CG44NV1XX lighted rocker switch?

To install the EATON XR1CG44NV1XX, ensure power is off. Connect wires to the 0.25 in quick connect tabs per the SPDT On/On circuit diagram. Snap the switch into a standard panel cutout. Verify the amber illumination and switching function before restoring power. Follow local electrical codes.
