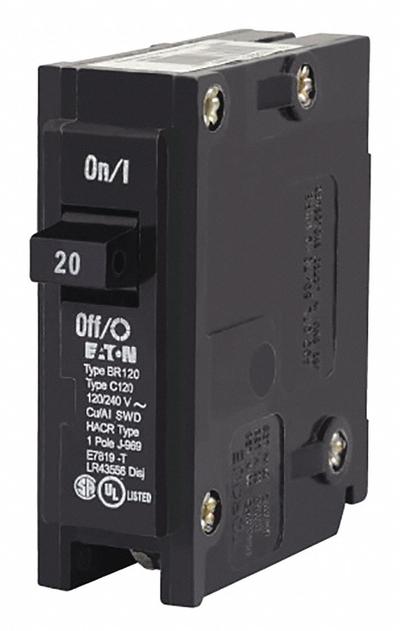

EATON Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC - BR & BD Series
EATONBR & BD Series

EATON Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC

The EATON BR120 is a standard single-phase circuit breaker from the BR & BD Series, rated at 20 A and 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. Designed for use with Type BR loadcenters, this…

SKU 3G-OTH-23077

Brand
EATON
Item
Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC
Category
BR & BD Series
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
BR120
Type
Single Phase, 10kA at 120/240V AC, Type BR Loadcenters
AC
120/240V
Amps
20 A
Phase
Single
For Use With
Type BR Loadcenters
Max. AIR Rating
10kA at 120/240V AC
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON BR120 is a standard single-phase circuit breaker from the BR & BD Series, rated at 20 A and 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. Designed for use with Type BR loadcenters, this EATON circuit breaker provides overcurrent protection in residential and commercial electrical distribution systems.
