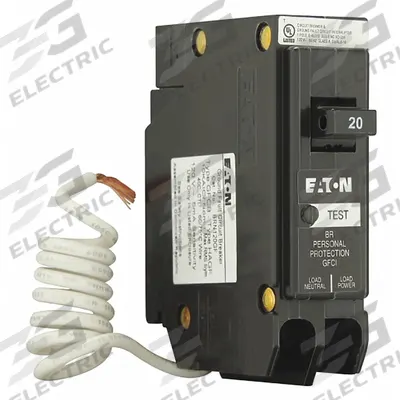

EATON Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC - BR & BD Series
EATONBR & BD Series

EATON Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC

The EATON BRN120GF is a 20 A, single-phase, 120/240V AC ground fault circuit interrupter (GFCI) from the BR & BD Series. It has a maximum AIR rating of 10kA at 120/240V AC and is designed for use with Type BR…

SKU 3G-OTH-23065

Brand
EATON
Item
Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC
Category
BR & BD Series
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
BRN120GF
Type
Single Phase, 10kA at 120/240V AC, Type BR Loadcenters
AC
120/240V
Amps
20 A
Phase
Single
For Use With
Type BR Loadcenters
Max. AIR Rating
10kA at 120/240V AC
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON BRN120GF is a 20 A, single-phase, 120/240V AC ground fault circuit interrupter (GFCI) from the BR & BD Series. It has a maximum AIR rating of 10kA at 120/240V AC and is designed for use with Type BR loadcenters.

Frequently Asked Questions

What is the EATON BRN120GF circuit breaker used for?

The EATON BRN120GF is a 20 A ground fault circuit interrupter (GFCI) used in residential and commercial Type BR loadcenters. It protects single-phase 120/240V AC circuits from ground faults, reducing shock risk in wet or outdoor areas like bathrooms, kitchens, and construction sites.

What are the specifications of the EATON BRN120GF?

The EATON BRN120GF is a 20 A, single-phase GFCI breaker rated 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. It is designed for Type BR loadcenters and is part of the BR & BD Series. The manufacturer part number is BRN120GF.

Where to buy the EATON BRN120GF worldwide?

3G Electric supplies the EATON BRN120GF worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time; we source and deliver this Eaton GFCI breaker globally.

How to install the EATON BRN120GF circuit breaker?

To install the EATON BRN120GF, first ensure the loadcenter is de-energized. Snap the breaker into a Type BR loadcenter bus bar, connect the neutral pigtail to the neutral bar, and attach the load wire to the breaker terminal. Follow local electrical codes and use a qualified electrician.
