EATON Circuit Breaker: 20 A, 120V AC, Single Phase, 10kA at 120V AC, Type BR Loadcenters - BR & BD Series
EATONBR & BD Series

EATON Circuit Breaker: 20 A, 120V AC, Single Phase, 10kA at 120V AC, Type BR Loadcenters

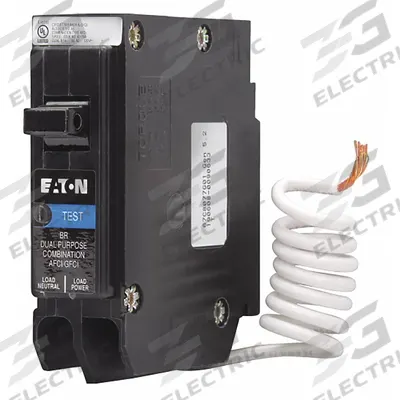

The EATON BRN120AF is a 20 A, single-phase, 120V AC arc fault circuit interrupter from the BR & BD Series. It has a maximum AIR rating of 10kA at 120V AC and is designed for use with Type BR loadcenters.

SKU 3G-OTH-23108

Brand
EATON
Item
Circuit Breaker: 20 A, 120V AC, Single Phase, 10kA at 120V AC, Type BR Loadcenters
Category
BR & BD Series
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
BRN120AF
Type
Single Phase, 10kA at 120V AC, Type BR Loadcenters
AC
120V
Amps
20 A
Phase
Single
Poles
1
For Use With
Type BR Loadcenters
Max. AIR Rating
10kA at 120V AC
AC Voltage Rating
120V AC
Circuit Breaker Type
Arc Fault Circuit Interrupter
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON BRN120AF is a 20 A, single-phase, 120V AC arc fault circuit interrupter from the BR & BD Series. It has a maximum AIR rating of 10kA at 120V AC and is designed for use with Type BR loadcenters.

Frequently Asked Questions

What is the EATON BRN120AF circuit breaker used for?

The EATON BRN120AF is an arc fault circuit interrupter (AFCI) used to protect residential and light commercial branch circuits from dangerous arc faults. It is designed for single-phase, 120V AC systems and installs in Type BR loadcenters to reduce fire risk from damaged wiring.

What are the specifications of the EATON BRN120AF?

The EATON BRN120AF is a 20 A, single-phase, 120V AC arc fault circuit interrupter with a maximum AIR rating of 10kA at 120V AC. It has 1 pole and is designed for use with Type BR loadcenters. The manufacturer part number is BRN120AF.

Where to buy the EATON BRN120AF worldwide?

3G Electric supplies the EATON BRN120AF worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this arc fault circuit interrupter.

How to install the EATON BRN120AF arc fault breaker?

To install the EATON BRN120AF, first ensure the loadcenter is de-energized. Snap the breaker onto the Type BR bus bar, connect the neutral pigtail to the neutral bar, and terminate the load wire. Follow NEC guidelines and the manufacturer's instructions for proper arc fault protection.
