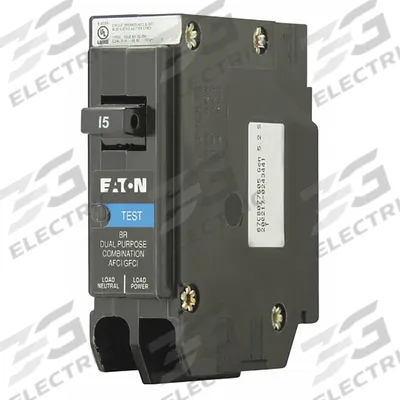

EATON Circuit Breaker: 15 A, 120V AC, Single Phase, 10kA at 120V AC, Type BR Loadcenters - BR & BD Series
EATONBR & BD Series

EATON Circuit Breaker: 15 A, 120V AC, Single Phase, 10kA at 120V AC, Type BR Loadcenters

The EATON BRP115DF is a 15 A, single-phase, 120V AC arc and ground fault circuit interrupter from the BR & BD Series. It has a maximum AIR rating of 10kA at 120V AC and is designed for use with Type BR loadcenters.

SKU 3G-OTH-23026

Brand
EATON
Item
Circuit Breaker: 15 A, 120V AC, Single Phase, 10kA at 120V AC, Type BR Loadcenters
Category
BR & BD Series
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
BRP115DF
Type
Single Phase, 10kA at 120V AC, Type BR Loadcenters
AC
120V
Amps
15 A
Phase
Single
Poles
1
For Use With
Type BR Loadcenters
Max. AIR Rating
10kA at 120V AC
AC Voltage Rating
120V AC
Circuit Breaker Type
Arc & Ground Fault Circuit Interrupter
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON BRP115DF is a 15 A, single-phase, 120V AC arc and ground fault circuit interrupter from the BR & BD Series. It has a maximum AIR rating of 10kA at 120V AC and is designed for use with Type BR loadcenters.

Frequently Asked Questions

What is the EATON BRP115DF circuit breaker used for?

The EATON BRP115DF is a 15 A arc and ground fault circuit interrupter used in residential and commercial Type BR loadcenters. It protects single-phase 120V AC branch circuits against electrical fires and shock hazards by detecting both arc faults and ground faults.

What are the specifications of the EATON BRP115DF?

The EATON BRP115DF is a 1-pole, 15 A, 120V AC, single-phase circuit breaker with a maximum AIR rating of 10kA at 120V AC. It is an arc and ground fault circuit interrupter designed for use with Type BR loadcenters. The manufacturer part number is BRP115DF.

Where to buy the EATON BRP115DF worldwide?

3G Electric supplies the EATON BRP115DF worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time; we source and deliver this arc and ground fault circuit interrupter to any country.

How to install the EATON BRP115DF circuit breaker?

To install the EATON BRP115DF, ensure the loadcenter is de-energized. Align the breaker's mounting tab with the bus bar slot in a Type BR loadcenter, then press firmly until it snaps into place. Connect the load neutral and line wires per the wiring diagram. Always follow local electrical codes and use a licensed electrician.
