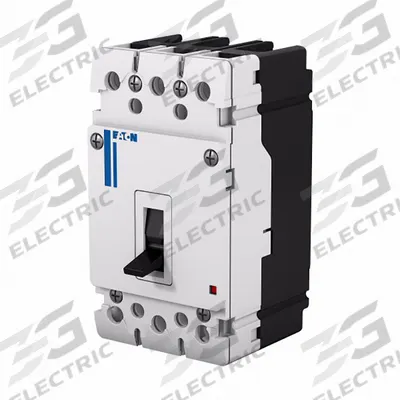

EATON Circuit Breaker: 40 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs - Power Defense Molded Case Circuit Breakers
EATONPower Defense Molded Case Circuit Breakers

EATON Circuit Breaker: 40 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT46, MPN PDG13F0040TFFJ) is a 40 A, 3-pole unit with a 125A/Frame 1 frame size. It features a maximum AIR rating of 25 kA at 480V AC, fixed instantaneous…

SKU 3G-OTH-23615

Brand
EATON
Item
Circuit Breaker: 40 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs
Category
Power Defense Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
PDG13F0040TFFJ
Type
25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std
Poles
3
Frame Size
125A/Frame 1
Max. AIR Rating
25 kA at 480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Standard Line and Load Lugs
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT46, MPN PDG13F0040TFFJ) is a 40 A, 3-pole unit with a 125A/Frame 1 frame size. It features a maximum AIR rating of 25 kA at 480V AC, fixed instantaneous trip, ABC phase connection, and standard line and load lugs for terminal connection.
