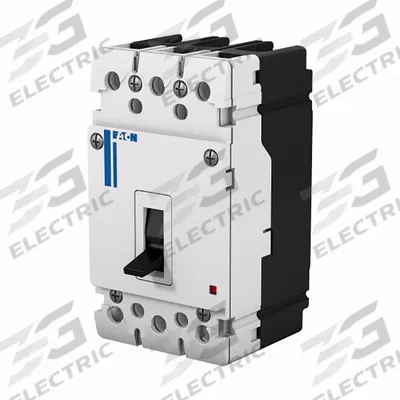

EATON Circuit Breaker: 80 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs - Power Defense Molded Case Circuit Breakers
EATONPower Defense Molded Case Circuit Breakers

EATON Circuit Breaker: 80 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT50, MPN PDG13F0080TFFJ) is an 80 A, 3-pole device with a 125A/Frame 1 frame size. It features a maximum AIR rating of 25 kA at 480V AC, fixed instantaneous…

SKU 3G-OTH-23702

Brand
EATON
Item
Circuit Breaker: 80 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs
Category
Power Defense Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
PDG13F0080TFFJ
Type
25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std
Poles
3
Frame Size
125A/Frame 1
Max. AIR Rating
25 kA at 480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Standard Line and Load Lugs
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT50, MPN PDG13F0080TFFJ) is an 80 A, 3-pole device with a 125A/Frame 1 frame size. It features a maximum AIR rating of 25 kA at 480V AC, fixed instantaneous trip, ABC phase connection, and standard line and load lugs for terminal connection.

Frequently Asked Questions

What is the EATON Power Defense molded case circuit breaker used for?

The EATON Power Defense molded case circuit breaker (MPN PDG13F0080TFFJ) is used for overcurrent protection in industrial and commercial electrical distribution systems. It safeguards branch circuits, feeders, and equipment from short circuits and overloads, with a 25 kA interrupting rating at 480V AC.

What are the specifications of the EATON PDG13F0080TFFJ circuit breaker?

This EATON circuit breaker is rated 80 A, 3-pole, with a 125A/Frame 1 frame size. It has a maximum AIR rating of 25 kA at 480V AC, fixed instantaneous trip, ABC phase connection, and standard line and load lugs. The manufacturer part number is PDG13F0080TFFJ.

Where to buy the EATON PDG13F0080TFFJ circuit breaker worldwide?

3G Electric supplies the EATON Power Defense circuit breaker (SKU 61HT50) worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time.

How to select the correct EATON molded case circuit breaker for an application?

Select based on continuous current rating (80 A), interrupting capacity (25 kA at 480V AC), pole count (3), and trip type (fixed instantaneous). Verify frame size (125A/Frame 1) and terminal connections (standard lugs). Consult the EATON Power Defense catalog for coordination and application guidelines.
