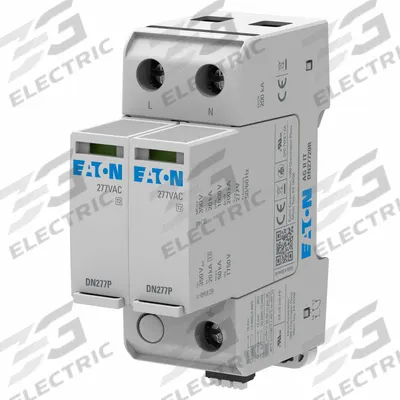

EATON Surge Protection Device: Two Phase, 277V AC, 2 Poles, 2 + Ground Wires - DIN Rail Internal-Mount SPDs
EATONDIN Rail Internal-Mount SPDs

EATON Surge Protection Device: Two Phase, 277V AC, 2 Poles, 2 + Ground Wires

The EATON AGDN27720R is a two-phase, DIN Rail internal-mount surge protective device (SPD) for panelboard mounting, operating at 277V AC with 2 wires plus ground. It provides L-G mode protection with a voltage…

SKU 3G-OTH-22741

Brand
EATON
Item
Surge Protection Device: Two Phase, 277V AC, 2 Poles, 2 + Ground Wires
Category
DIN Rail Internal-Mount SPDs
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
AGDN27720R
Type
2 + Ground Wires, L-G/L-N/N-G
AC
277V
Phase
Two
Poles
2
Voltage
277V AC
Includes
Alarm Contacts
Filtering
No
Mounting Style
Panelboard
Number of Wires
2 Wires + Ground
Modes of Protection
L-G
Voltage Protection Rating
1500V (L-L, L-G, N-G)
Short Circuit Current Rating
200 kA
Max. Continuing Operating Voltage
277 V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
