EATON Surge Protection Device: Two Phase, 600V AC, 2 Poles, 2 + Ground Wires - DIN Rail Internal-Mount SPDs
EATONDIN Rail Internal-Mount SPDs

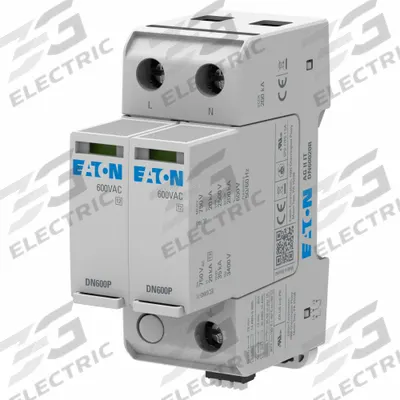

EATON Surge Protection Device: Two Phase, 600V AC, 2 Poles, 2 + Ground Wires

The EATON AGDN60020R is a two-phase, DIN Rail internal-mount surge protective device (SPD) designed for panelboard mounting. It operates on a 600V AC system with 2 wires plus ground, providing L-N mode protection and…

SKU 3G-OTH-22825

Brand
EATON
Item
Surge Protection Device: Two Phase, 600V AC, 2 Poles, 2 + Ground Wires
Category
DIN Rail Internal-Mount SPDs
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
AGDN60020R
Type
2 + Ground Wires, L-G/L-N/N-G
AC
600V
Phase
Two
Poles
2
Voltage
600V AC
Includes
Alarm Contacts
Filtering
No
Mounting Style
Panelboard
Number of Wires
2 Wires + Ground
Modes of Protection
L-N
Voltage Protection Rating
1500V (L-L, L-G, N-G)
Short Circuit Current Rating
200 kA
Max. Continuing Operating Voltage
600 V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON AGDN60020R is a two-phase, DIN Rail internal-mount surge protective device (SPD) designed for panelboard mounting. It operates on a 600V AC system with 2 wires plus ground, providing L-N mode protection and a voltage protection rating of 1500V (L-L, L-G, N-G). The unit includes alarm contacts, has a short-circuit current rating of 200 kA, and a maximum continuous operating voltage of 600 V AC.

Frequently Asked Questions

What is the EATON AGDN60020R surge protection device used for?

The EATON AGDN60020R is a two-phase, DIN Rail internal-mount SPD designed for panelboard mounting in 600V AC systems. It protects sensitive equipment from voltage transients and surges, commonly used in industrial and commercial power distribution panels where reliable L-N mode protection is required.

What are the specifications of the EATON AGDN60020R?

The EATON AGDN60020R operates at 600V AC, two-phase, with 2 wires plus ground. It provides L-N mode protection, a voltage protection rating of 1500V (L-L, L-G, N-G), a short-circuit current rating of 200 kA, and a maximum continuous operating voltage of 600V AC. It includes alarm contacts and mounts on a panelboard.

Where to buy the EATON AGDN60020R worldwide?

3G Electric supplies the EATON AGDN60020R surge protection device worldwide. As a global industrial equipment distributor established in 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we source and deliver this Eaton SPD to any country.
