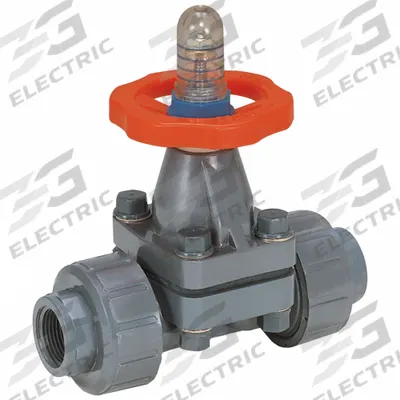

HAYWARD Diaphragm Valve: 1 1/2 in, CPVC, 2-Way, NPT x Socket, 150 psi Max Pressure (CWP) - CPVC Diaphragm Valves for Chemicals with Position Indicators
HAYWARDCPVC Diaphragm Valves for Chemicals with Position Indicators

HAYWARD Diaphragm Valve: 1 1/2 in, CPVC, 2-Way, NPT x Socket, 150 psi Max Pressure (CWP)

The HAYWARD Diaphragm Valve is a 1 1/2 in CPVC diaphragm valve for chemicals, featuring a position indicator. This 2-way valve has NPT x Socket connections and a maximum pressure rating of 150 psi (CWP). It is…

SKU 3G-OTH-448634

Brand
HAYWARD
Item
Diaphragm Valve: 1 1/2 in, CPVC, 2-Way, NPT x Socket, 150 psi Max Pressure
Category
CPVC Diaphragm Valves for Chemicals with Position Indicators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HAYWARD
Manufacturer Part Number
DAB2015UFF
Type
CPVC, 2-Way, NPT x Socket, FPM
Special Features
Position Indicator
Diaphragm Material
FPM
Max Pressure (CWP)
150 psi
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HAYWARD Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HAYWARD Diaphragm Valve is a 1 1/2 in CPVC diaphragm valve for chemicals, featuring a position indicator. This 2-way valve has NPT x Socket connections and a maximum pressure rating of 150 psi (CWP). It is equipped with an FPM diaphragm (MPN DAB2015UFF).

Frequently Asked Questions

What is the HAYWARD Diaphragm Valve used for?

The HAYWARD Diaphragm Valve is used for on-off or throttling control of corrosive chemicals in industrial piping systems. Its CPVC body and FPM diaphragm resist chemical attack, making it suitable for water treatment, chemical processing, and plating applications where leak-free operation and visual position indication are required.

What are the specifications of the HAYWARD Diaphragm Valve DAB2015UFF?

The HAYWARD Diaphragm Valve DAB2015UFF is a 1 1/2 in, 2-way CPVC valve with NPT x Socket connections. It has a maximum pressure rating of 150 psi (CWP) and an FPM diaphragm. A built-in position indicator shows the valve's open/closed status. The manufacturer part number is DAB2015UFF.

Where to buy the HAYWARD Diaphragm Valve in worldwide?

3G Electric supplies the HAYWARD Diaphragm Valve DAB2015UFF to customers worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact our team for a quote and lead time on this CPVC diaphragm valve with position indicator.

How to install the HAYWARD Diaphragm Valve?

Install the HAYWARD Diaphragm Valve by ensuring the piping is clean and aligned. Apply thread sealant to NPT connections or solvent cement to socket ends per CPVC manufacturer instructions. Mount the valve with the diaphragm facing the correct flow direction. Tighten bolts evenly to the torque specified by HAYWARD to avoid damaging the FPM diaphragm.
