MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max - Differential Pressure Indicators with Switch
MIDWEST INSTRUMENTDifferential Pressure Indicators with Switch

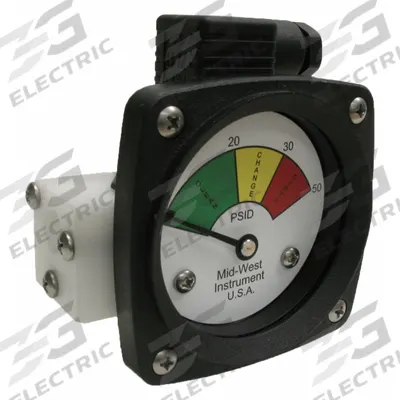

MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522P-050-LA) is a differential pressure indicator with switch, featuring a Buna-N sensor and Acetal Plastic housing. It offers ±5% of Full Scale…

SKU 3G-OTH-174350

Brand
MIDWEST INSTRUMENT
Item
3-Color Differential Pressure Indicator: 1,000 psig Max
Category
Differential Pressure Indicators with Switch
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MIDWEST INSTRUMENT
Manufacturer Part Number
522P-050-LA
Type
Static Pressure, 522
Accuracy
±5% of Full Scale
Sensor Material
Buna-N
Housing Material
Acetal Plastic
Transition Points
0 psid to 20 psid (Green) / 20 psid to 30 psid (Yellow) / 30 psid to 50 psid (Red)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MIDWEST INSTRUMENT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522P-050-LA) is a differential pressure indicator with switch, featuring a Buna-N sensor and Acetal Plastic housing. It offers ±5% of Full Scale accuracy and color-coded transition points: 0 psid to 20 psid (Green), 20 psid to 30 psid (Yellow), and 30 psid to 50 psid (Red), with a maximum static pressure of 1,000 psig.

Frequently Asked Questions

What is the MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator used for?

This indicator is used to monitor differential pressure in industrial fluid systems, providing visual alerts via color-coded transitions (green, yellow, red) at set points. It is commonly applied in filtration, pumping, and hydraulic systems where pressure differentials indicate filter clogging or system status.

What are the specifications of the MIDWEST INSTRUMENT 522P-050-LA?

The MIDWEST INSTRUMENT 522P-050-LA has a maximum static pressure of 1,000 psig, accuracy of ±5% of full scale, a Buna-N sensor, and an Acetal Plastic housing. Transition points are 0 psid to 20 psid (green), 20 psid to 30 psid (yellow), and 30 psid to 50 psid (red).

Where to buy the MIDWEST INSTRUMENT 522P-050-LA worldwide?

You can source the MIDWEST INSTRUMENT 522P-050-LA through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring the product reaches your facility reliably.

How to install the MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator?

Install the indicator in a clean, dry location within the system's pressure rating. Connect the high- and low-pressure ports per the manufacturer's orientation markings. Ensure the Buna-N sensor is compatible with the process fluid. Verify zero calibration before commissioning.

Used in

Common applications for MIDWEST INSTRUMENT
Filter monitoring in industrial water treatment — MIDWEST INSTRUMENT 522 series 3-color differential pressure indicators
Flow measurement in chemical processing — MIDWEST INSTRUMENT Series 120 piston-type differential pressure gauges
Liquid level indication in oil and gas storage tanks — MIDWEST INSTRUMENT Model 142 diaphragm-type differential pressure gauges
HVAC system filter condition monitoring — MIDWEST INSTRUMENT Series 130 differential pressure gauges with glass-reinforced plastic housing
Pump differential pressure monitoring in industrial plants — MIDWEST INSTRUMENT 522 series indicators with switch for alarm output
