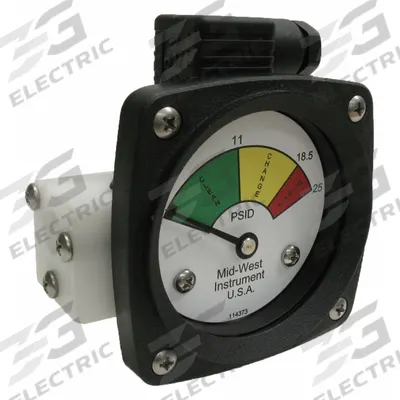

MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max - Differential Pressure Indicators with Switch
MIDWEST INSTRUMENTDifferential Pressure Indicators with Switch

MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522P-025-LA) is a differential pressure indicator with switch, featuring a Buna-N sensor and Acetal Plastic housing. It offers ±5% of Full Scale…

SKU 3G-OTH-174338

Brand
MIDWEST INSTRUMENT
Item
3-Color Differential Pressure Indicator: 1,000 psig Max
Category
Differential Pressure Indicators with Switch
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MIDWEST INSTRUMENT
Manufacturer Part Number
522P-025-LA
Type
Static Pressure, 522
Accuracy
±5% of Full Scale
Sensor Material
Buna-N
Housing Material
Acetal Plastic
Transition Points
0 psid to 11 psid (Green) / 11 psid to 18.5 psid (Yellow) / 18.5 psid to 25 psid (Red)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MIDWEST INSTRUMENT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522P-025-LA) is a differential pressure indicator with switch, featuring a Buna-N sensor and Acetal Plastic housing. It offers ±5% of Full Scale accuracy and transitions through three color zones: Green (0 psid to 11 psid), Yellow (11 psid to 18.5 psid), and Red (18.5 psid to 25 psid), with a maximum static pressure of 1,000 psig.

Frequently Asked Questions

What is the MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator used for?

This indicator visually monitors differential pressure across filters, pumps, or process lines in industrial systems. Its three-color zone (green, yellow, red) provides at-a-glance status, helping plant engineers detect clogging or pressure drops before equipment damage occurs.

What are the specifications of the MIDWEST INSTRUMENT 522P-025-LA?

The MIDWEST INSTRUMENT 522P-025-LA has ±5% of Full Scale accuracy, a Buna-N sensor, and an Acetal Plastic housing. It transitions at 0 psid to 11 psid (green), 11 psid to 18.5 psid (yellow), and 18.5 psid to 25 psid (red), with a maximum static pressure of 1,000 psig.

Where to buy the MIDWEST INSTRUMENT 522P-025-LA worldwide?

3G Electric supplies the MIDWEST INSTRUMENT 522P-025-LA to global customers. As a sourcing partner, we handle logistics, customs clearance, and delivery to your site worldwide. Contact us for a quote and lead time on this differential pressure indicator.

How to select a differential pressure indicator for filter monitoring?

Select a model with a pressure range covering your system's expected differential, like the MIDWEST INSTRUMENT 522P-025-LA's 0 psid to 25 psid range. Ensure the sensor material (e.g., Buna-N) is compatible with your fluid. Verify maximum static pressure exceeds your system's operating pressure.

Used in

Common applications for MIDWEST INSTRUMENT
Filter monitoring in industrial water treatment — MIDWEST INSTRUMENT 522 series 3-color differential pressure indicators
Flow measurement in chemical processing — MIDWEST INSTRUMENT Series 120 piston-type differential pressure gauges
Liquid level indication in oil and gas storage tanks — MIDWEST INSTRUMENT Model 142 diaphragm-type differential pressure gauges
HVAC system filter condition monitoring — MIDWEST INSTRUMENT Series 130 differential pressure gauges with glass-reinforced plastic housing
Pump differential pressure monitoring in industrial plants — MIDWEST INSTRUMENT 522 series indicators with switch for alarm output
