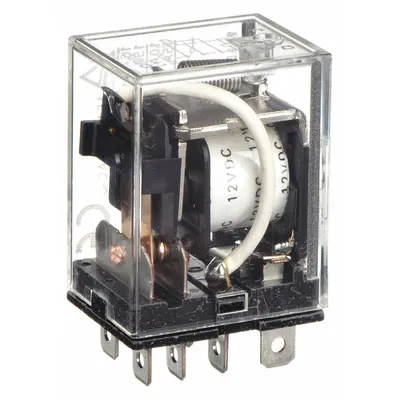

OMRON General Purpose Relay: Socket Mounted, 15 A Current Rating, 12V DC, SPDT
The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a SPDT contact configuration, a 15 A current rating at 12V DC, and an operating current of 7…
SKU 3G-OTH-37039
Also listed as: LY1DC12 · LY1 DC12
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a SPDT contact configuration, a 15 A current rating at 12V DC, and an operating current of 7 A at 24V DC for inductive loads. The relay uses quick-connect electrical connections and has 8 pins/terminals.
Frequently Asked Questions
What is the OMRON LY1-DC12 relay used for?
The OMRON LY1-DC12 is a general-purpose relay used for switching industrial loads such as motors, solenoids, and lighting. Its SPDT contact and 15 A rating suit control panels, HVAC systems, and automation equipment where reliable plug-in socket mounting is required.
What are the specifications of the OMRON LY1-DC12 relay?
The OMRON LY1-DC12 is a socket-mounted, plug-in relay with a square base and flat pins. It has SPDT contacts, a 15 A current rating at 12V DC, and an operating current of 7 A at 24V DC for inductive loads. It features quick-connect terminals and 8 pins.
Where to buy OMRON LY1-DC12 relays worldwide?
You can source the OMRON LY1-DC12 relay from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this LY Series relay.
How to install the OMRON LY1-DC12 relay?
To install the OMRON LY1-DC12, ensure the relay coil voltage matches your 12V DC supply. Plug the relay into a compatible square-base socket with flat-pin receptacles. Secure the quick-connect terminals and verify the SPDT wiring matches your load requirements before energizing.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
