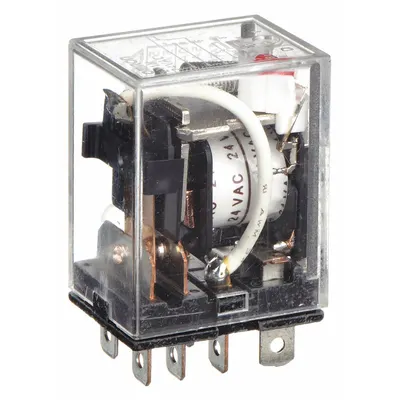

OMRON General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V AC, SPDT
The OMRON General Purpose Relay: Socket Mounted (SKU 3G-OTH-37759, MPN LY1N-AC24) is a plug-in relay from the LY Series with a square base and flat pin shape. It features a 24V AC coil, SPDT contact configuration…
SKU 3G-OTH-37759
Also listed as: LY1NAC24 · LY1N AC24
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON General Purpose Relay: Socket Mounted (SKU 3G-OTH-37759, MPN LY1N-AC24) is a plug-in relay from the LY Series with a square base and flat pin shape. It features a 24V AC coil, SPDT contact configuration, and 8 pins/terminals with quick-connect electrical connection. The relay has a 15 A current rating and an operating current of 10 A at 110V AC (Inductive Load).
Frequently Asked Questions
What is the OMRON LY1N-AC24 relay used for?
The OMRON LY1N-AC24 is a general-purpose relay used for switching industrial loads such as motors, solenoids, and lighting. It is commonly applied in control panels, automation systems, and HVAC equipment where reliable SPDT switching at 24V AC is required.
What are the specifications of the OMRON LY1N-AC24 relay?
The OMRON LY1N-AC24 is a socket-mounted relay from the LY Series with a 24V AC coil, SPDT contacts, and a 15 A current rating. It has 8 flat pins, a square base, and quick-connect terminals. Operating current is 10 A at 110V AC (inductive load).
Where to buy the OMRON LY1N-AC24 relay worldwide?
3G Electric supplies the OMRON LY1N-AC24 relay worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this LY Series relay.
How to install the OMRON LY1N-AC24 relay?
To install the OMRON LY1N-AC24, plug the relay into a compatible square-base socket until it clicks. Ensure the coil voltage matches your 24V AC supply. Use quick-connect terminals for wiring. Always de-energize the circuit before installation to prevent shock.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
