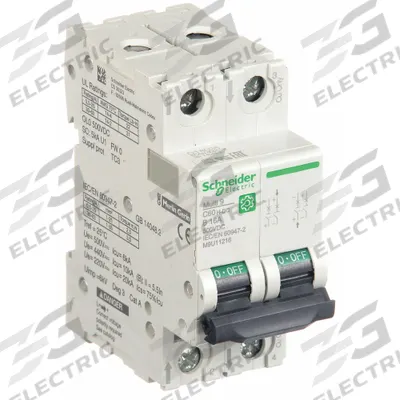

SCHNEIDER Supplementary Protector: 16 A Amps, 500V DC, 5kA at 250V DC, Screw Clamp - DC-Only Rated, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
SCHNEIDERDC-Only Rated, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors

SCHNEIDER Supplementary Protector: 16 A Amps, 500V DC, 5kA at 250V DC, Screw Clamp

The SCHNEIDER C60H-DC IEC Supplementary Protector (MPN M9U11216) is a 16 A, 2-pole, DC-only rated UL1077 DIN rail-mount supplementary protector with a B curve type. It is rated for 500V DC and has a maximum…

SKU 3G-OTH-22482

Brand
SCHNEIDER
Item
Supplementary Protector: 16 A Amps, 500V DC, 5kA at 250V DC, Screw Clamp
Category
DC-Only Rated, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
M9U11216
Series
C60H-DC
Type
5kA at 250V DC, Screw Clamp, C60H-DC, B
DC
500V
Curve Type
B
Max. AIR Rating
5kA at 250V DC
AC Voltage Rating
Not Rated
DC Voltage Rating
500V DC
Terminal Connection
Screw Clamp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER C60H-DC IEC Supplementary Protector (MPN M9U11216) is a 16 A, 2-pole, DC-only rated UL1077 DIN rail-mount supplementary protector with a B curve type. It is rated for 500V DC and has a maximum interrupting rating of 5kA at 250V DC, with screw clamp terminals and no AC voltage rating.

Frequently Asked Questions

What is the SCHNEIDER C60H-DC M9U11216 supplementary protector used for?

The SCHNEIDER C60H-DC M9U11216 is a 16 A, 2-pole DC-only rated supplementary protector for overcurrent protection in DC circuits up to 500V DC. It is commonly used in industrial control panels, solar combiner boxes, and battery systems where branch-circuit protection is not required.

What are the specifications of the SCHNEIDER C60H-DC M9U11216?

The SCHNEIDER C60H-DC M9U11216 is rated 16 A, 500V DC, with a B curve type and a maximum interrupting rating of 5kA at 250V DC. It has screw clamp terminals, is 2-pole, and is UL1077 listed for supplementary protection. It has no AC voltage rating.

Where to buy the SCHNEIDER C60H-DC M9U11216 worldwide?

3G Electric supplies the SCHNEIDER C60H-DC M9U11216 to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this DC supplementary protector.

How to install the SCHNEIDER C60H-DC M9U11216 on a DIN rail?

To install the SCHNEIDER C60H-DC M9U11216, snap it onto a standard 35 mm DIN rail. Ensure the DC supply is off. Connect line and load wires to the screw clamp terminals per the torque specs on the device label. Use only in DC circuits; it is not rated for AC.
