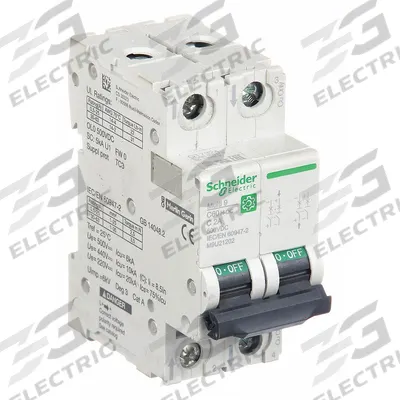

SCHNEIDER Supplementary Protector: 2 A Amps, 500V DC, 5kA at 250V DC, Screw Clamp - DC-Only Rated, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
SCHNEIDERDC-Only Rated, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors

SCHNEIDER Supplementary Protector: 2 A Amps, 500V DC, 5kA at 250V DC, Screw Clamp

The SCHNEIDER IEC Supplementary Protector (SKU 482N88, MPN M9U21202) is a DC-only rated, 2-pole UL1077 DIN rail-mount supplementary protector from the C60H-DC series. It features a 2 A amp rating, 500V DC voltage…

SKU 3G-OTH-22425

Brand
SCHNEIDER
Item
Supplementary Protector: 2 A Amps, 500V DC, 5kA at 250V DC, Screw Clamp
Category
DC-Only Rated, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
M9U21202
Series
C60H-DC
Type
5kA at 250V DC, Screw Clamp, C60H-DC, C
DC
500V
Curve Type
C
Max. AIR Rating
5kA at 250V DC
AC Voltage Rating
Not Rated
DC Voltage Rating
500V DC
Terminal Connection
Screw Clamp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER IEC Supplementary Protector (SKU 482N88, MPN M9U21202) is a DC-only rated, 2-pole UL1077 DIN rail-mount supplementary protector from the C60H-DC series. It features a 2 A amp rating, 500V DC voltage rating, 5kA at 250V DC maximum AIR rating, C curve type, and screw clamp terminal connection. This device is not rated for AC voltage.

Frequently Asked Questions

What is the SCHNEIDER C60H-DC supplementary protector used for?

The SCHNEIDER C60H-DC supplementary protector (MPN M9U21202) protects DC circuits from overcurrents and short circuits. It is used in industrial control panels, solar systems, and battery banks where DC-only protection is required. As a UL1077 device, it is not a branch circuit protector but a supplementary protector for downstream equipment.

What are the specifications of the SCHNEIDER M9U21202?

The SCHNEIDER M9U21202 is a 2-pole DC-only supplementary protector rated 2 A, 500V DC, with a maximum AIR rating of 5kA at 250V DC. It features a C curve type, screw clamp terminals, and is part of the C60H-DC series. It is not rated for AC voltage and mounts on a DIN rail.

Where to buy SCHNEIDER C60H-DC supplementary protectors worldwide?

3G Electric supplies the SCHNEIDER C60H-DC supplementary protector (MPN M9U21202) to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this DC-rated protector.

How to install a SCHNEIDER C60H-DC supplementary protector?

Install the SCHNEIDER C60H-DC protector by snapping it onto a 35 mm DIN rail. Connect DC supply wires to the screw clamp terminals, ensuring correct polarity. Torque terminals to the manufacturer's specification. This device is DC-only; do not apply AC voltage. Always isolate power before installation.
