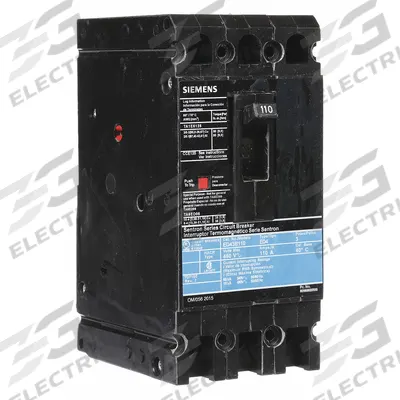

Siemens Molded Case Circuit Breaker: 110 A Amps, 18kA at 480V AC, Fixed, Load Side Lug - ED-Frame Siemens Molded Case Circuit Breakers
SiemensED-Frame Siemens Molded Case Circuit Breakers

Siemens Molded Case Circuit Breaker: 110 A Amps, 18kA at 480V AC, Fixed, Load Side Lug

The SIEMENS ED-Frame Molded Case Circuit Breaker (SKU 6FND2) is a 110 A rated device from the ED4 series. It features a fixed instantaneous trip, a maximum AIR rating of 18kA at 480V AC, and ABC phase connection with…

SKU 3G-OTH-22095

Brand
Siemens
Item
Molded Case Circuit Breaker: 110 A Amps, 18kA at 480V AC, Fixed, Load Side Lug
Category
ED-Frame Siemens Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
ED43B110
Series
ED4
Type
18kA at 480V AC, Fixed, Load Side Lug, ABC, ED4
Max. AIR Rating
18kA at 480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Load Side Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SIEMENS ED-Frame Molded Case Circuit Breaker (SKU 6FND2) is a 110 A rated device from the ED4 series. It features a fixed instantaneous trip, a maximum AIR rating of 18kA at 480V AC, and ABC phase connection with load-side lug terminals.

Frequently Asked Questions

What is the SIEMENS ED43B110 molded case circuit breaker used for?

The SIEMENS ED43B110 is a 110 A molded case circuit breaker from the ED4 series, used for overcurrent protection in industrial power distribution panels, motor control centers, and branch circuits requiring ABC phase connection and a fixed instantaneous trip.

What are the specifications of the SIEMENS ED43B110 circuit breaker?

The SIEMENS ED43B110 is rated 110 A with a maximum AIR of 18kA at 480V AC. It features a fixed instantaneous trip, ABC phase connection, and load-side lug terminals. It is part of the ED4 series and has manufacturer part number ED43B110.

Where to buy the SIEMENS ED43B110 circuit breaker worldwide?

3G Electric supplies the SIEMENS ED43B110 molded case circuit breaker worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this ED4 series device.

How to select the correct SIEMENS ED-Frame circuit breaker for my application?

To select the correct SIEMENS ED-Frame circuit breaker, verify your system voltage (480V AC), required amp rating (110 A), and available fault current (18kA). Confirm phase connection (ABC) and terminal type (load-side lug). The ED4 series offers fixed instantaneous trip for consistent protection.
